Air Mass Modelled Blend Table

Air Mass Modelled Blend Table

Image Image

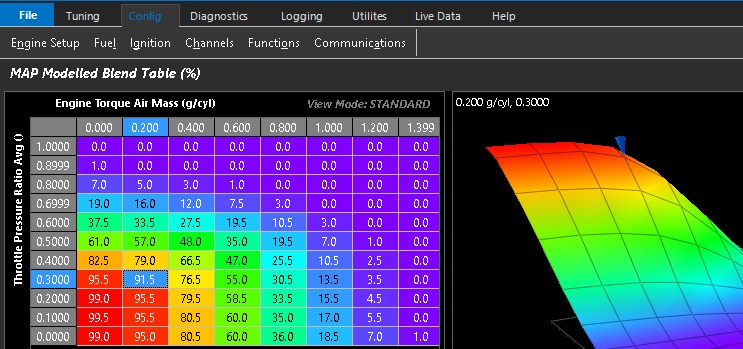

Speed Density (Parameter 1) over Throttle Mass Flow (Parameter 2) shown as an example

3D table with configurable axis that allows blending between to the two selected Air Mass Modelled Parameters.

 0.0%    : All Parameter 1

100.0% : All Parameter 2
