Emtron 8 Way Keypad Configuration

Configure Emtron CAN as follows to use Emtron 8 Way Keypad

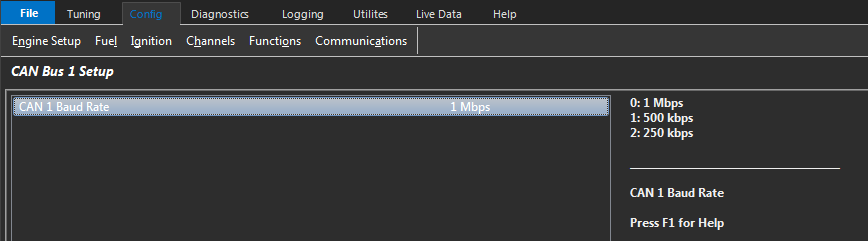

Set CAN Baud Rate to 1Mbps

    Config -> Communications -> CAN Bus 1/2 -> CAN Bus 1/2 Setup

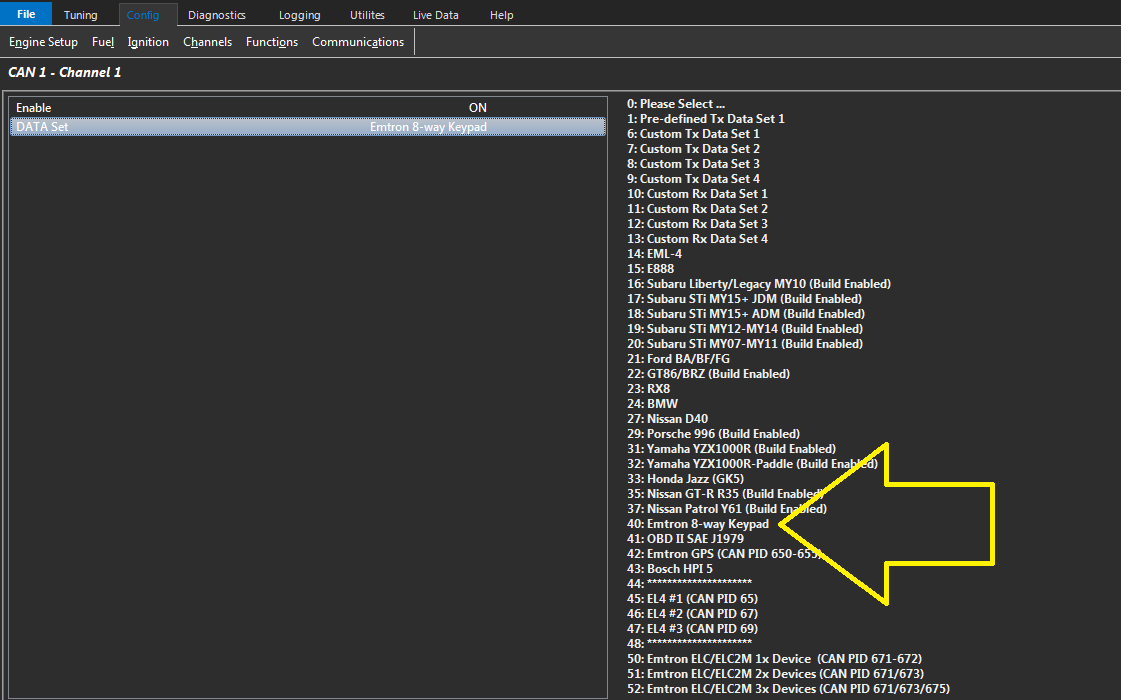

Set CAN Channel Settings as follows :

    Config -> Communications -> CAN Bus 1/2 - Channel 1-6 -     40 : Emtron 8 - way Keypad

Configure the Keypad behavior as follows :

    Config -> Communications -> Emtron CAN Devices -> Emtron Keypad

Keypad button behavior has multiple modes of configuration

0: Toggle (2 Position)

1: Sequential (3 Position)

2: Sequential (4 Position)

3: Binary (8 Position)

4: Momentary

Keypad Button1 Mode

Toggle: x2 Position

OFF - No LED

ON - Green LED

Sequential: x3 Positions

OFF - No LED

Position 1 - Green LED

Position 2 - Orange LED

Sequential: x4 Positions

OFF - No LED

Position 1 - Green LED

Position 2 - Orange LED

Position 3 - Red LED

Binary: x8 Positions

OFF - No LED

Position 1 - Green LED

Position 2 - Orange LED

Position 3 - Green & Orange LED

Position 4 - Red LED

Position 5 - Red & Green LED

Position 6 - Red & OrangeLED

Position 7 - Red & Green & Orange LED

Momentary: Green light ON while button is pressed

Assign Keypad inputs as follows :

    Config -> Channels -> Input Setup ->

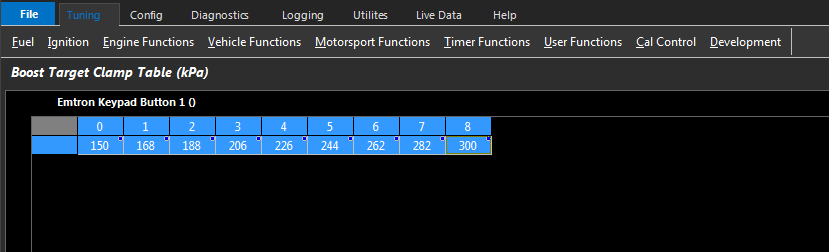

** When using Keypad input in multiple positions (sequential or binary), the keypad position runtime can be used in tables as in above example
