Fuel Table Control

Fuel Table Control

Tuning -> Fuel -> Fuel Table Control

The fuel table control allows you to tailor the number of fuel tables used and how they are utilized.

There are 3 Main VE tables available, they can be used individually, on a user selectable cal slot

(Example: The position of the Si Drive selector in a Subaru Sti over the CAN BUS)

On a user defined Z-Axis (Example: Spanned across ethanol content)

Or a user defined blend across tables based on specified parameters.

This allows a user defined level of complexity

Image Image

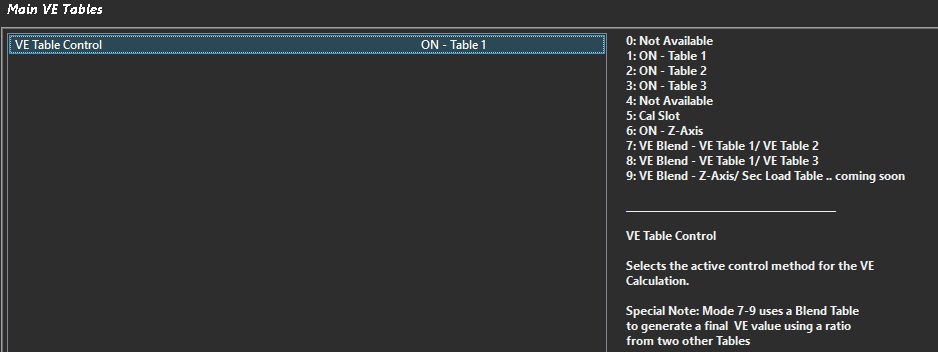

Main VE Fuel Table Control Tab shown as an example.

This level of complexity flexibility is common to all fuel control tables.

Image Image

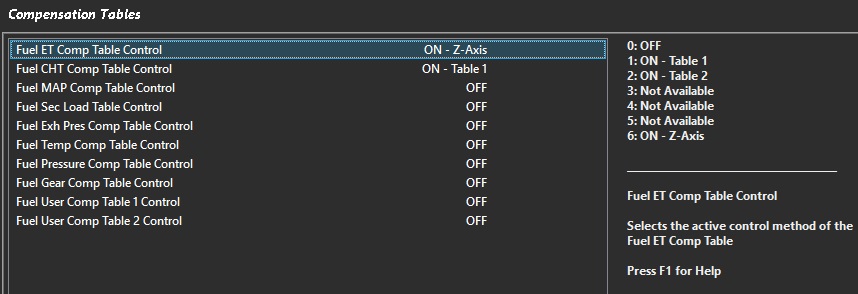

Compensation Tables:

The compensation tables offer the tuner the ability to compensate for a wide range of variable conditions

All compensation tables are user definable 3D tables that can be utilized against any runtime

More commonly used compensations are already named & linked to their specific purpose

With 2 additional User Comp tables where all parameters are defined by the user.

Image Image
