Ignition Advance Clamp

Ignition Advance Clamp

Image Image

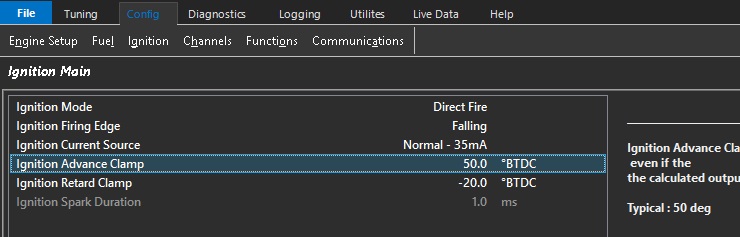

The maximum ignition advance allowed even if the the calculated output is higher.

Typical : 50 deg

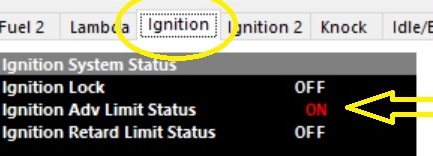

The ECU also provides a Status flag to indication this condition. Open the ECU Runtimes menu (F3) and select the Ignition Tab.

Image Image
