Ignition Mode

Ignition Mode

Image Image

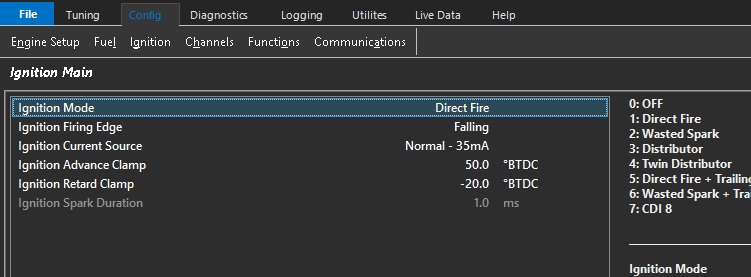

This is where the ignition type is configured.

0: OFF

1: Direct Fire

2: Wasted Spark

3: Distributor

4: Twin Distributor

5: Direct Fire + Direct Trailing Spark

6: Wasted Spark + Direct Trailing Spark

7: CDI 8

NOTES:

  • Ignition Channel 1 is the only channel available for Distributor Mode.
  • Ignition Channels 1 and 2  are the only channels available for Twin Distributor Mode.
  • Trailing Spark options 5 & 6. The maximum number of trailing channels available is 6.

( all other Ignition Modes are fully configurable)

See Ignition Channel Setup for channel setup help.
