Ignition Spark Duration

Ignition Spark Duration

Image Image

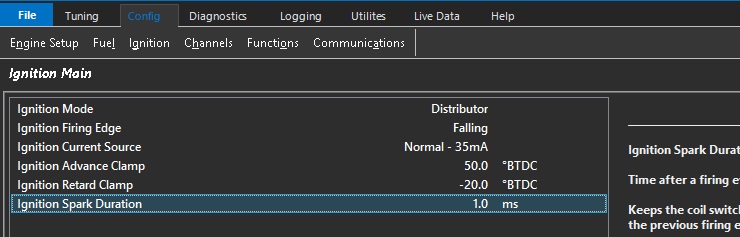

The user definable time factor after a firing event before the coil can be switched back on.

This function keeps the ignition coil switched off for a fixed time, allowing the energy from the previous firing event to fully discharged.

Default: 1.0ms

0.5ms to 5.0ms time window available

Note: Distributor systems only
