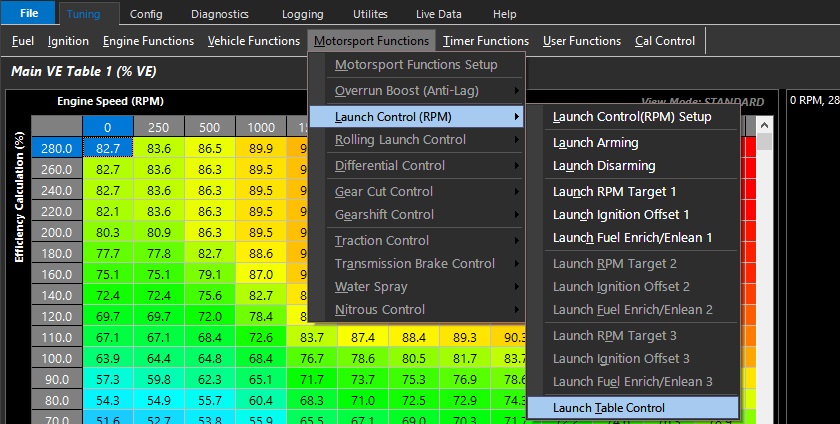

Launch Table Control

Launch Table Control

Image Image

Image Image

Selects the active control method of the Launch Control - 3 tables are available

0: .. Please Select

1: ON - Table 1

2: ON - Table 2

3: ON - Table 3

4: Not Available

5: ON - Cal Slot

6: Launch Select Table

  • Launch RPM Table. Sets the Launch RPM when the Launch Control System is Armed.

    • Size: 12 x 11
    • Resolution: 1 RPM
    • Max value = 20000 RPM
    • Min value = 0 RPM

  • Ignition Retard Table.  Sets the amount of Ignition Retard used when the Launch Control System is Armed.

    • Size: 12 x 11
    • Resolution: 0.5 Deg
    • Max value = -100.0 Deg/%
    • Min value = 0 Deg/%

  • Fuel Enrich/Enlean Table.  Sets the amount of Fuel Enrichment/Enleanment used when the Launch Control System is Armed.

    • Size: 12 x 11
    • Resolution: 1%
    • Max value = +100%
    • Min value = -100%
