Limp Home Limits

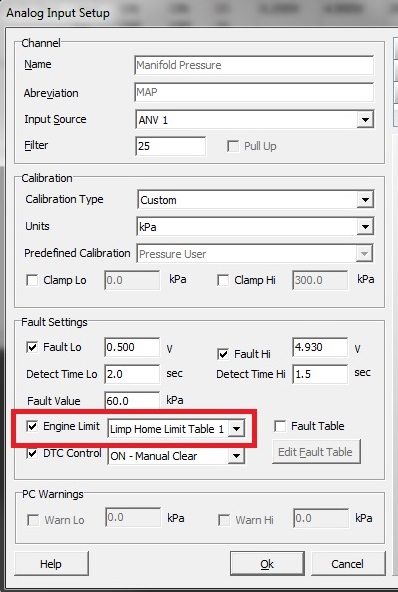

This function provides Engine Speed Limiting when a DTC error occurs on an Input Channel. The operation of these table(s) can be controlled independently from each Input Channel setup page.

Image Image

The following settings are not adjustable:

Start Cut -  Set at 50%

End Cut -  Set at 95%

Control Range = Set at +200 RPM
