Timers

Timers

The following calculated runtimes are generated by Emtron that are Timer related (to be further discussed more specifically):

User Timers        -     Status of User Timers

Crank Exit Timer    -     Time counter after cranking

    Crank Timer        -    Time count during cranking

    Firing Events Counter    -     Count of engine firing events

    Engine Cycle Counter    -     Count of engine cycles

    Engine Runtime     -     Engine runtime

    ECU Runtime        -     ECU on runtime

    TPS WOT Timer        -     Time throttle position is wide open

    TPS Closed Timer    -     Time throttle position is closed

    MAP High Timer        -     Time manifold pressure is high

    Gear Cut Timer        -     Gear cut duration

    Pedal Closed Timer    -     Time pedal position is closed

Race Timer        -     Race timer

Gearshift Cut Start     -     Gearshift time from cut start

Gearshift Next Gear     -     Gearshift time to next gear

Upshift Measured     -     Measured upshift time

Downshift Measured    -     Measured downshift time

Anti-Lag Disarm        -     Disarm timer for Anti-Lag

** Many of these timers are pre-configured and function automatically.

User Timers

Timers must be enabled

• Config, Function Setup, Timer Functons

On

Off

User Timer Setup

Timers are configured in the Tuning section

• Tuning, Timer Functions

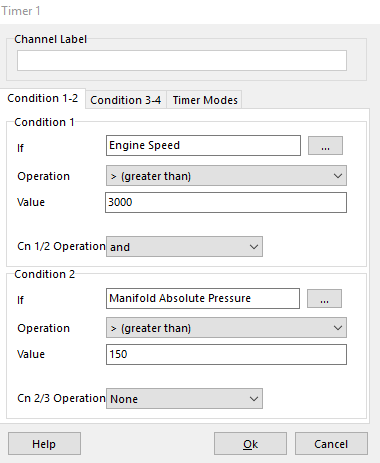

Configuring timer 1-5 opens up a configuration window to set conditions, max time, and Timer Reset Mode

Set the conditions for the timer to start using Emtron ECU runtimes or status.  There are up to 4 conditions that can be used to start the timer.

\

Max Time

Set the max time the timer can count

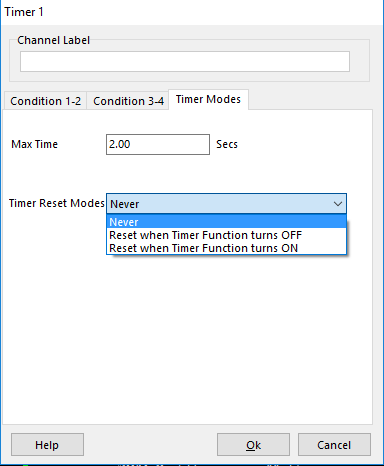

Timer Reset Mode

Reset when Timer Function turns OFF

    The timer will reset when the conditions are no longer met

Example:

Timer condition is >3000 rpm, the timer will reset every time the engine speed falls below 3000rpm.

Reset when Timer Function turns ON

    The timer will reset when the conditions are met again

Example:

Timer condition is >3000 rpm, the timer will reset when the engine speed falls below 3000rpm, and then goes past it again

Never

    The timer will not reset

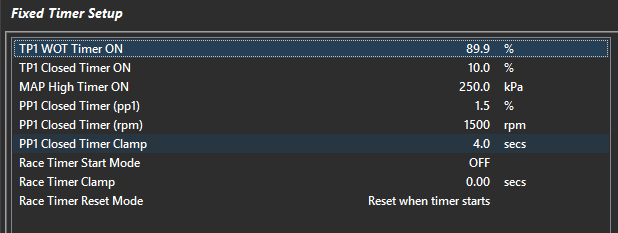

Fixed Timer Setup

Fixed Timers are configured in the Tuning section

• Tuning, Timer Functions, Fixed Timer Setup

TP1 WOT Timer ON

Set what position TP1 needs to surpass to start counting TP WOT time

TP1 Closed Timer ON

Set what position TP1 needs to be below to start counting TP Closed time

MAP High Timer ON

Set what kPa MAP needs to surpass to start counting MAP High time

PP1 Closed Timer (pp1)

Set what position PP1 needs to be below to start counting PP Closed time

PP1 Closed Timer (rpm)

Set what RPM needs to be below to start counting PP Closed time

Race Timer Start Mode

Select from the following to trigger the Race Timer to start or create a custom function using a User Output

Race Timer Start Mode

Max time for Race Timer

Race Timer Reset Mode

Select from the following to trigger the Race Timer to reset or create a custom function using a User Output
