3: Throttle Mass Flow (TMF) + AirMass Modelled (Blend)

Throttle Mass Flow (TMF) + Air Mass Modelled (Blend)

Image Image

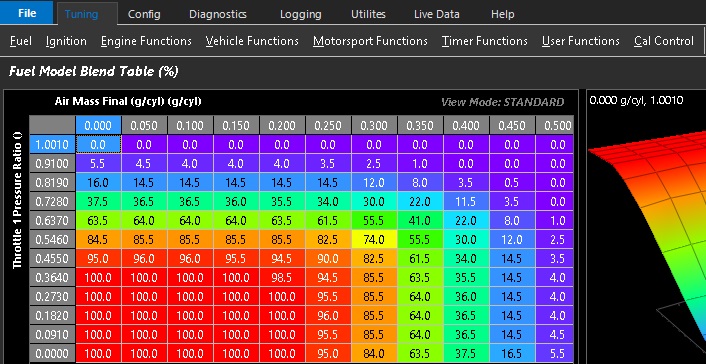

A Blend Table generates a Final Air Mass using a ratio from Throttle Mass Flow (TMF) and Air Mass Modelled.

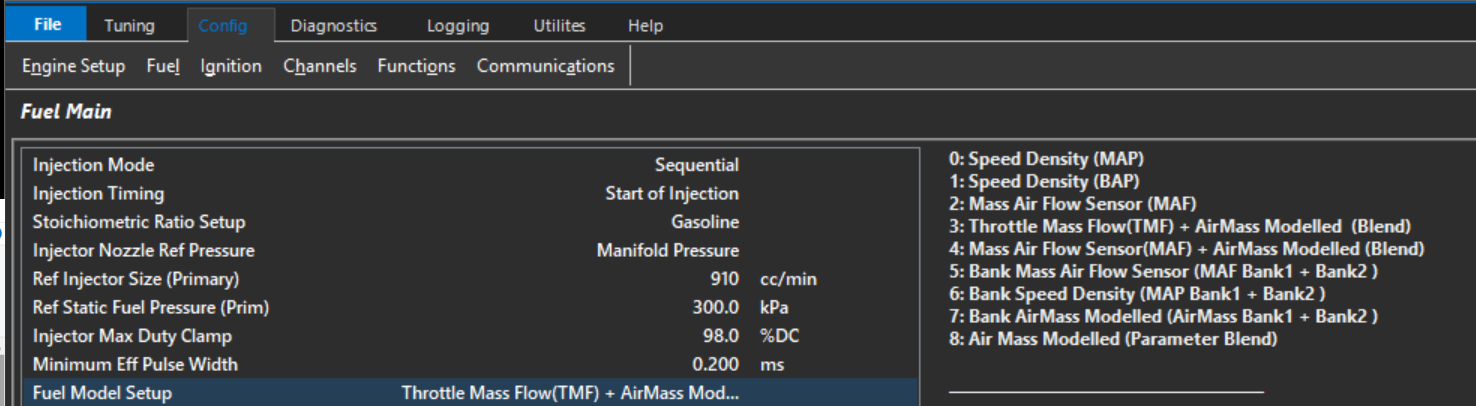

When this mode gets enabled, the Fuel Model Blending Control table becomes active in tuning:

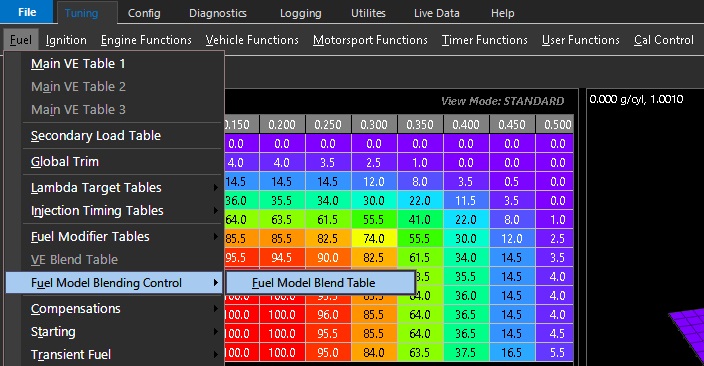

Tuning -> Fuel -> Fuel Model Blending Control

Image Image

Image Image

0%     = Air Mass Modelled

100% = Throttle Mass Flow (TMF)

Throttle Mass Flow setup must be configured - Throttle Mass Flow Setup

Air Mass Modelled setup must be configured - MAP Modelled Setup

Above 0.9 throttle pressure ratio, TMF must be blended into the user defined AirMass Modelled alternative air mass calculation.

** Blend tables must be configured completely before tuning

TMF tuning is accomplished by validating the Throttle Body Area Table
