Engine Protection Control

Engine Protection Control

Emtron has 4 preset engine protection functions available in the software

Engine Temperature  -  Engine Temperature Sensor

Oil Pressure              -  Engine Oil Pressure Sensor (If Fitted)

Fuel Pressure           -  Fuel Pressure Sensor (If Fitted) - Fuel Pressure 1 Differential Offset runtime is utilised

EGT                           -  EGT Sensors (If Fitted)

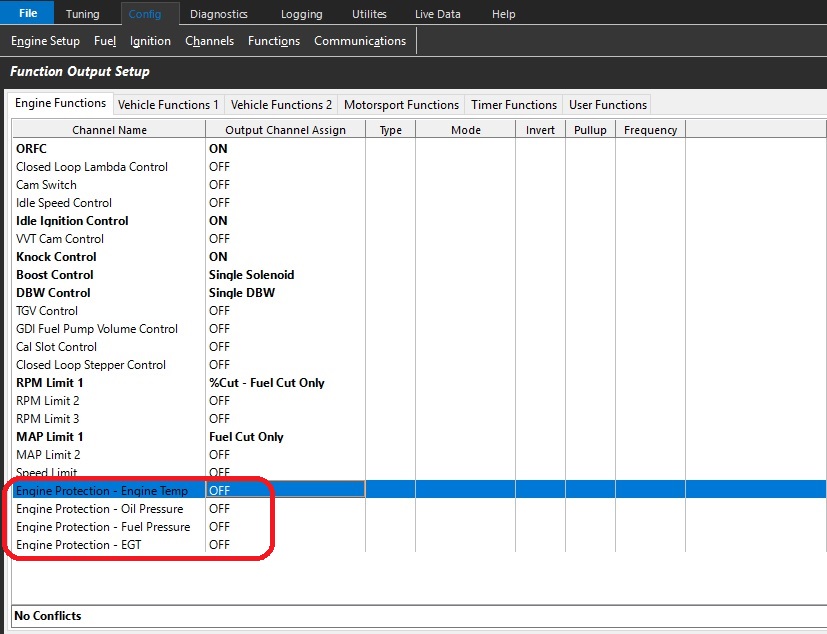

Each function must be enabled and cut type selected to become active.

(Fuel or Ignition Cut) - Fuel Cut is recommended

Once active, each function must be defined for correct operation.

Further engine protection can be defined by the user through the use of user functions and or timers.

Fuel Pressure 1 Differential Offset runtime

The Fuel Pressure 1 Differential Offset runtime reports the offset value in kPa between calculated and measured differential pressure.

Fuel Pressure sensor is required

.
