Injection Timing Primary

Injection Timing Primary

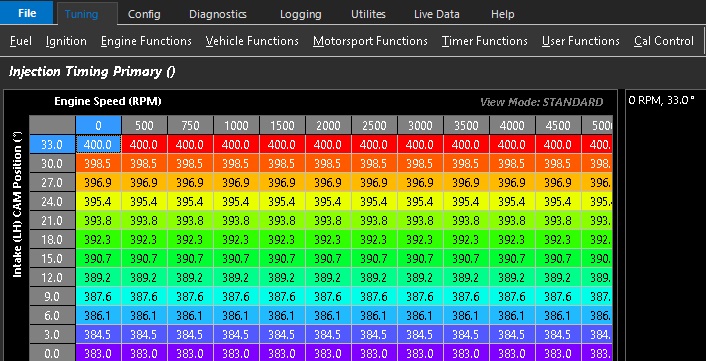

Injector timing units are values in degrees.

Units are described as an “Advance Table”, so values are BTDC.

IE - 400 degrees = 400 degrees before TDC Cylinder 1 compression,

or also 40 degrees before TDC between exhaust and intake stroke (overlap) - Valves Closed

360 degrees = TDC between exhaust and intake stroke (overlap period)

300 degrees = 60 degrees after intake valve has opened

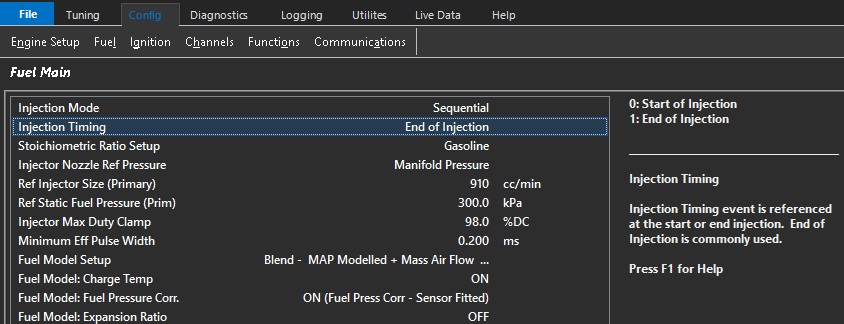

SOI/EOI (Determines start of injection or end of injection) function is controlled under : Injection Timing

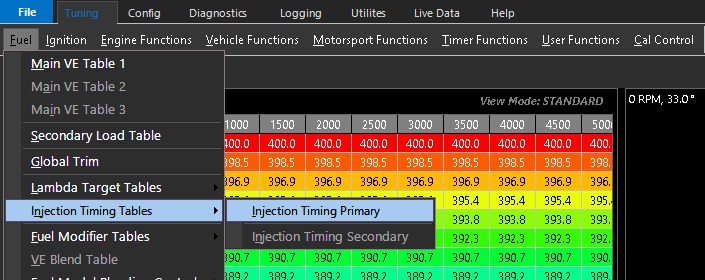

Config -> Fuel -> Fuel Main -> Injection Timing
