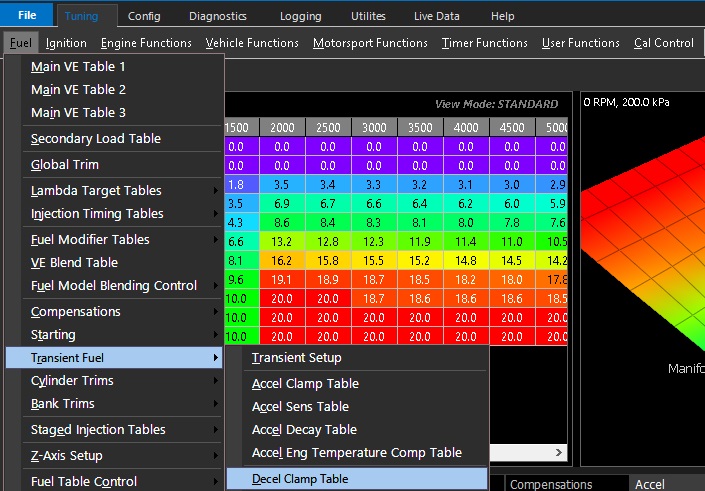

Decel Clamp Table

Decel Clamp Table

Image Image

Image Image

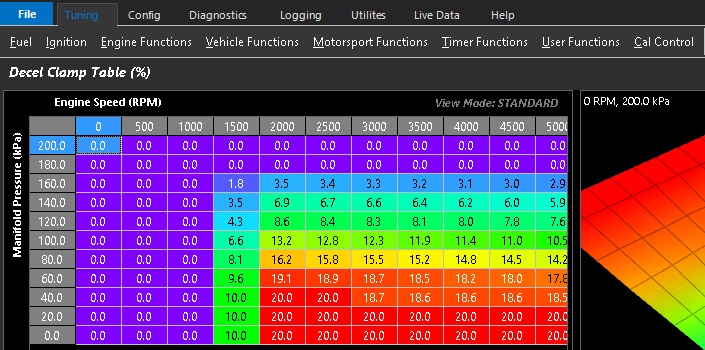

The Decel Clamp Compensation Table limits the maximum amount of PW reduction (percentage vs calculated PW) allowed by decel fuel.

Example:

Decel Clamp = 50%

Fuel base pulse width = 4.0ms

Max Accel Fuel PW allowed = - 2.0ms

Total fuel pulse width = 2.0ms
