Generic Dash Configuration

Configure Emtron CAN as follows to send Pre-Defined Data set for most Dash Systems

*** Emtron has provided Pre-Defined Data set to most dash manufacturers to match these settings

Set CAN Baud Rate to 1Mbps

    Config -> Communications -> CAN Bus 1/2 -> CAN Bus 1/2 Setup

Image Image

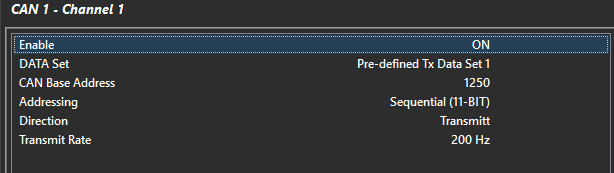

Set a CAN Channel Setting as follows :

    Config -> Communications -> CAN Bus 1/2 - Channel 1-6

Image Image
