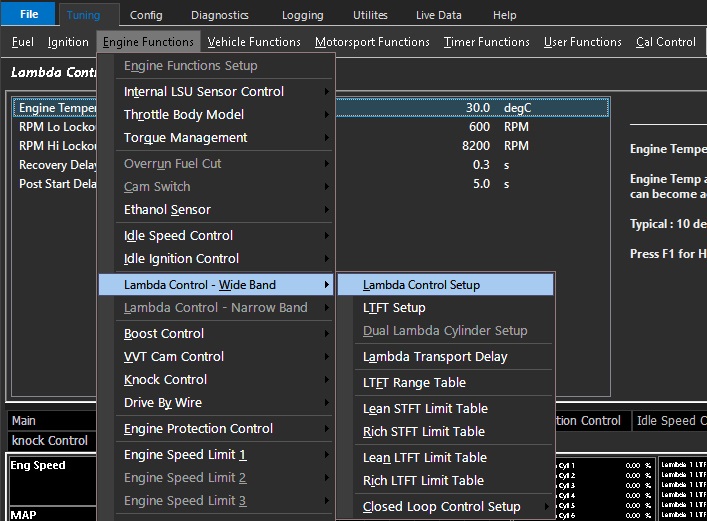

Lambda Control Setup

Lambda Control Setup

Image Image

Image Image

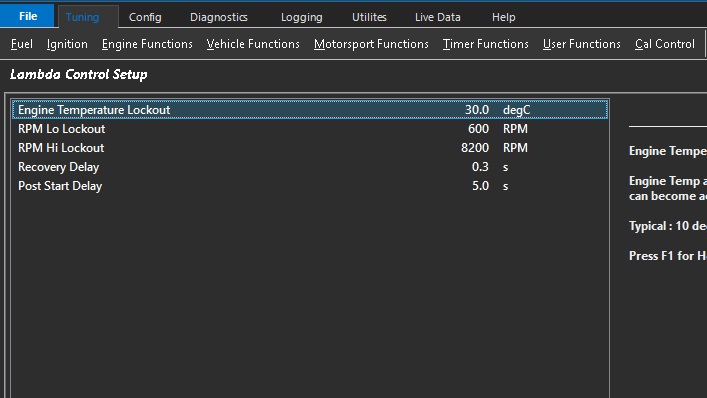

  • Engine Temp Lockout    -    Engine temp above which Lambda Control can become active
  • RPM Lo Lockout    -    Lambda control will be switched OFF below this RPM
  • RPM Hi Lockout    -    Lambda control will be switched OFF above this RPM
  • Recovery Delay    -    Delay in which Lambda Control can become active once within the lockout criteria
  • Post Start Delay    -    Delay in which Lambda Control can become active after start up

d**** NOTE: When using the Internal Lambda the Closed Loop will not start until either or both sensors are ready to operate.
