Dual Lambda Cylinder Setup

Dual Lambda Cylinder Setup

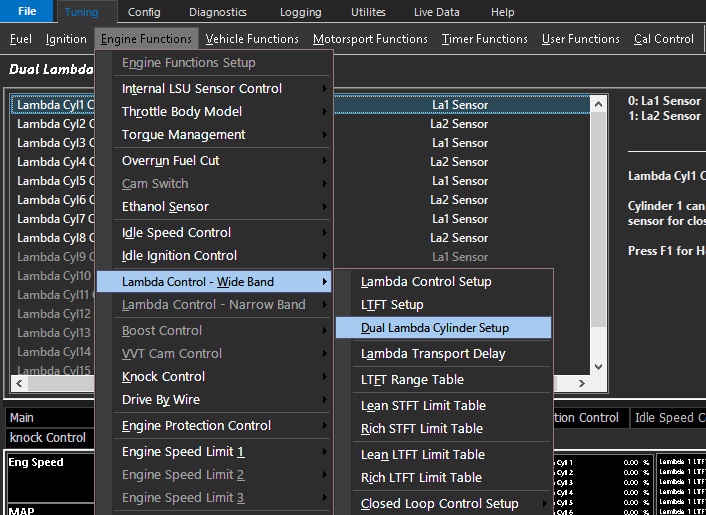

Image Image

Image Image

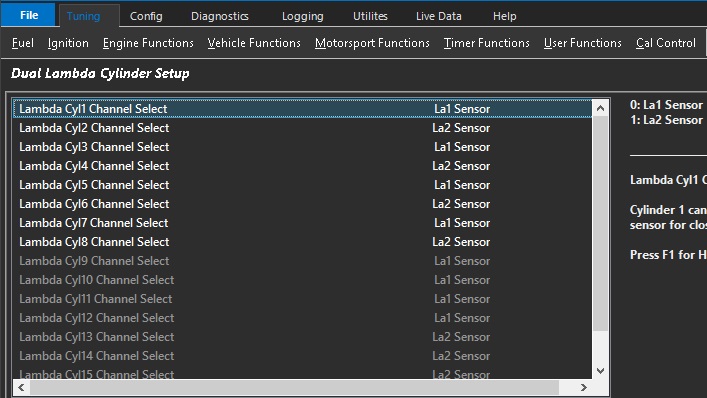

Chev LS Engine example

Select the appropriate sensor for each cylinder

0 = La1

1 = La2

** Normally corresponds to which bank the Lambda sensor is installed in.

** Does not correspond to Bank Cylinder Setup
