LTFT Range Table

LTFT Range Table

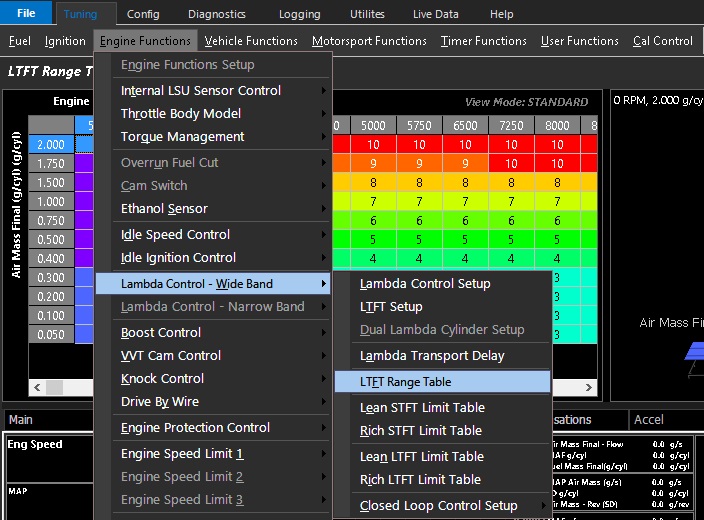

There are 10 ranges which can be set by the user in a 3D table.  Each number defines a range.

Each range allows for storage of LTFT values.

This allows the user to define “zones” so that different LTFT learning values do not affect each other, but also allow the trims to be fed forward appropriately

When in this range the LTFT looks at the STFT and loads values for these ranges.

A value of “0” disables the LTFT for that zone

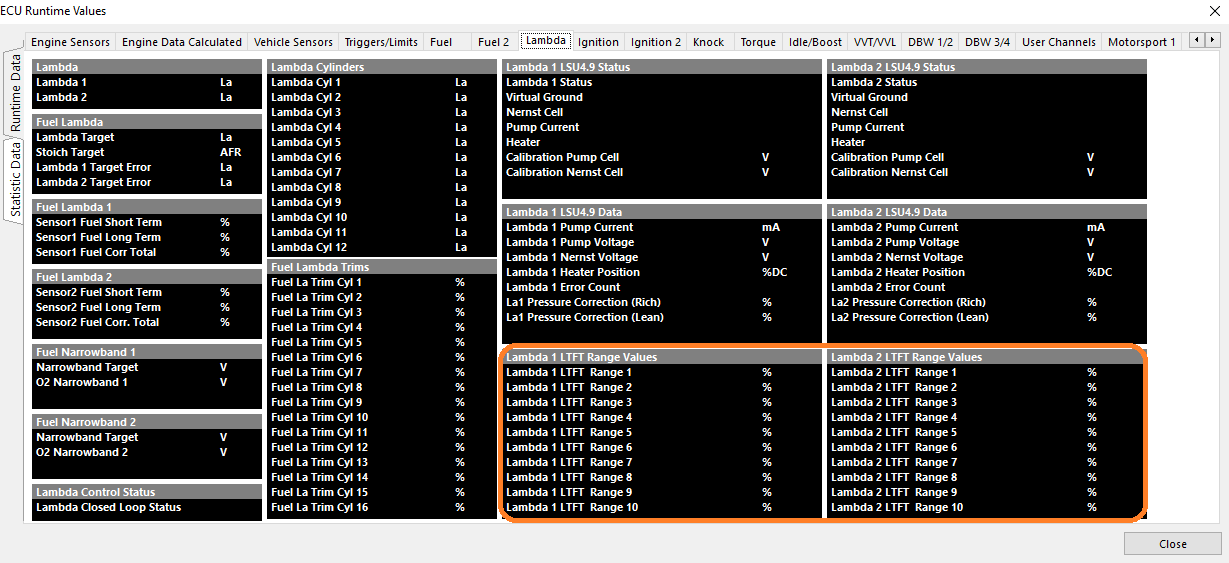

LTFT Range Values can be viewed in Runtimes under Lambda as well

** Note - LTFT Range Values clear on ECU Power Cycle
