Rich LTFT Limit Table

Rich LTFT Limit Table

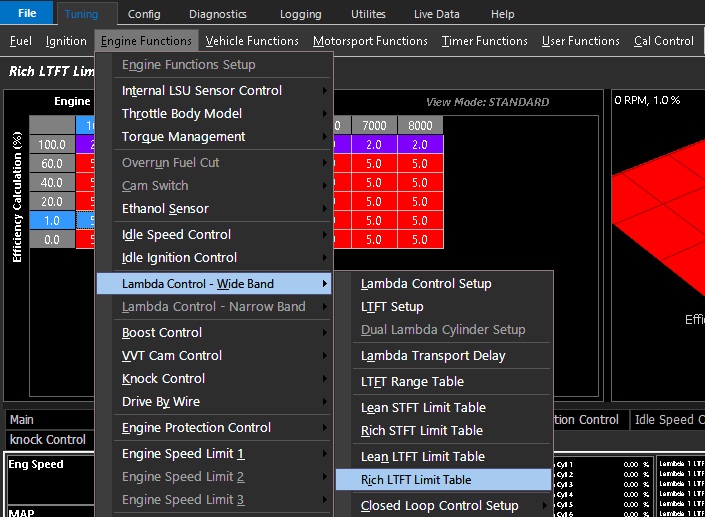

Image Image

Units define the maximum Rich (positive) compensation for closed loop fueling

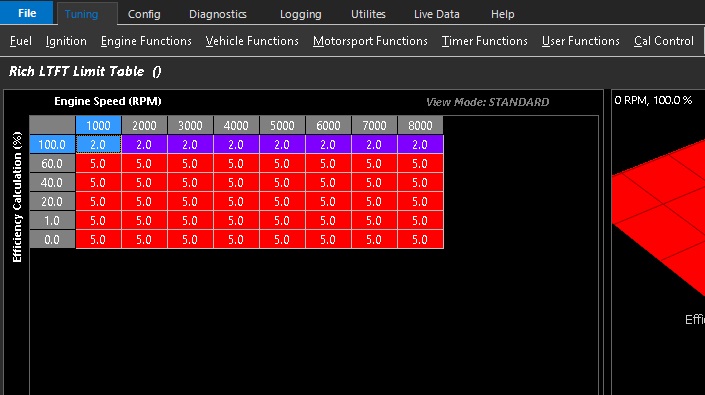

Image Image

Axis configuration is open.  Example shows limited fuel adding under higher engine loads.
