Idle Ignition Control Setup

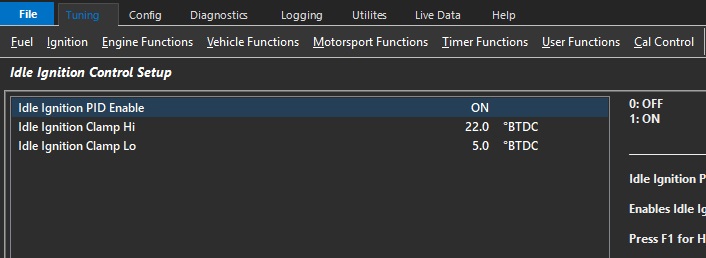

Idle Ignition Control Setup

Idle Ignition PID Enable

Enables Idle Ignition closed loop PID.  Without closed loop, the system will still reference the Base Idle Ignition Table (recommended ON)

0: OFF

1: ON

Idle Ignition Clamp Hi/Lo

Sets the minimum and maximum ignition angle the Idle Ignition Control can apply to the Base Timing setting.

Typical: 5 Deg (min), 22 Deg (max)
