Base Idle Ignition Table

Base Idle Ignition Table

Defines the base ignition angle of the idle ignition control.

This table can be expanded into a 3D look up table using any runtime for axis.

Image Image

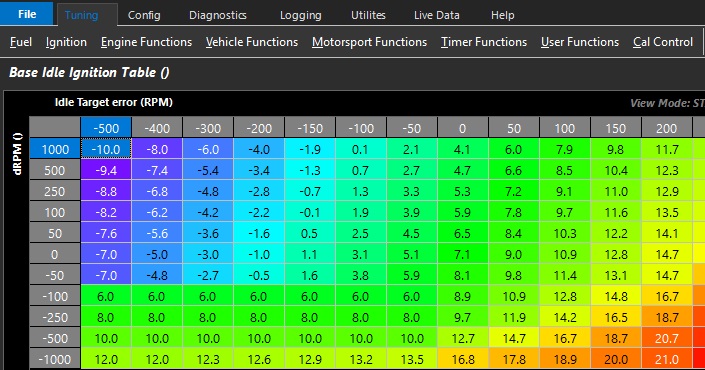

Above example shows the table spanned using Idle Target error & dRPM

* Idle Target error references Idle Speed Control Main Idle Target table

** dRPM is the engine Speed rate of change
