Idle Ignition PID Setup

Idle Ignition PID Setup

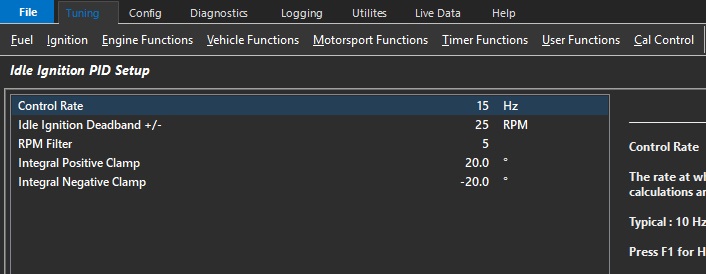

Image Image

Control Rate

The frequency or rate at which the PID control algorithm calculations are performed.

Typical : 10 Hz

Idle Ignition Deadband +/-

The output control signal is held constant when the Input Signal (RPM) falls within the deadband range of the Setpoint (RPM Target). This helps reduce steady state error and oscillations.

Typical : 25 RPM

RPM Filter

Filters the RPM signal to allow better PID control

Typical : 5

Integral Positive/Negative Clamp

Allows the user to set the minimum and maximum Integral gain compensation used by the closed loop system.
