Initial Position Table

Initial Position Table


This look up table defines the base position of the idle speed control valve.

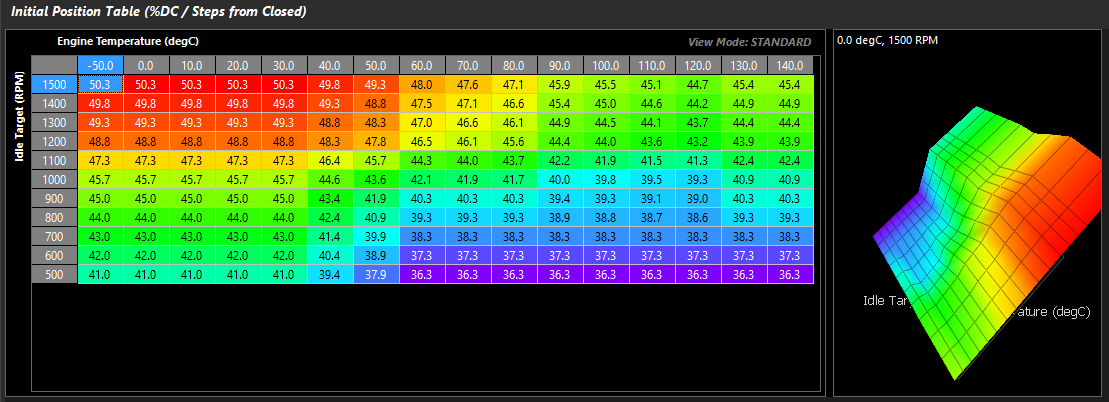

If a 2 or 3 wire Idle Solenoid is used, then this a base duty cycle to define position.

    Units = % Duty Cycle

Image Image

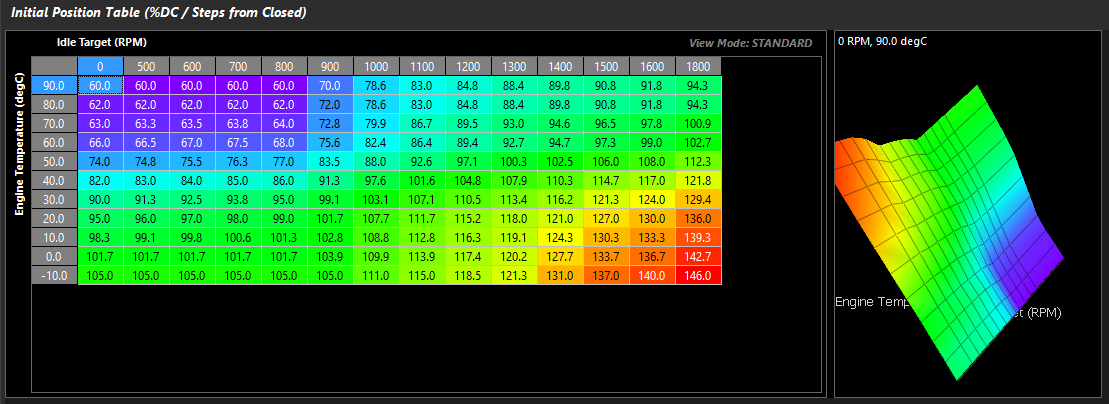

If a stepper motor, these are step counts from the closed position.

    Units = Step Count

Image Image

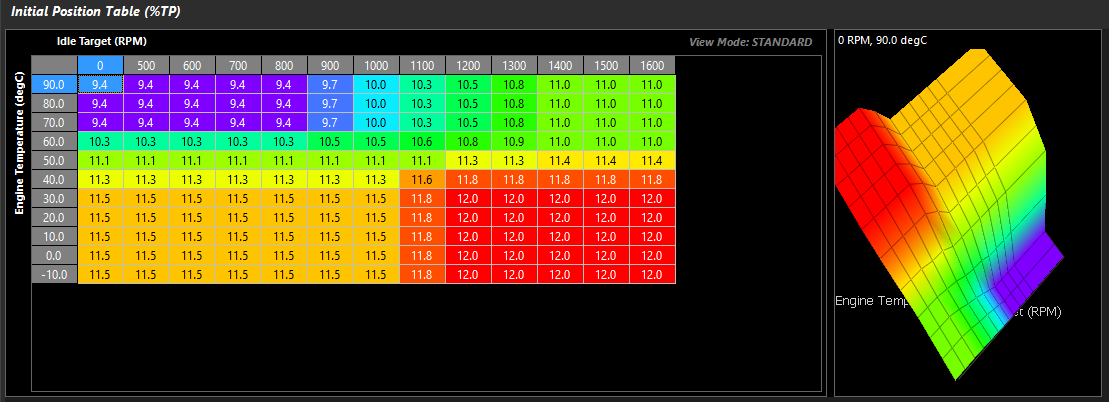

If DBW, this is a feed forward table for the electronic throttle positioning.

    Units = Drive By Wire Servo Position

Image Image

If DBW TMF, this is a feed forward table for air flow in g/s for the electronic throttle positioning.

    Units = Throttle Mass Flow g/s

Image Image

** Recommended Axis Configuration is Engine Temp vs Idle Speed Target for Closed Loop control\
