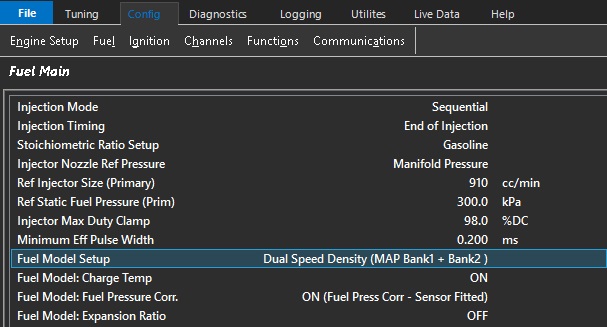

6: Bank Speed Density (MAP Bank1 + Bank2 )

Bank Speed Density (MAP Bank1 + Bank2 )

The ECU Independently controls the Fueling for the Engines Banks 1 and 2 using two MAP Sensors . Required when there

is no common plenum between the cylinders banks.

Make sure the “Bank Cylinder Setup” Table is correctly initialised.  See Bank Cylinder Setup

Speed Density:

The Input channel  “Manifold Pressure - Bank 1” is used to control the Fueling on Bank 1.

The Input channe; “Manifold Pressure - Bank 2” is used to control the Fueling on Bank 2.
