VVT

VVT Input Channel Selection

For closed loop position control, each camshaft must be assigned a position sensor.  \

Config View -> Inputs -> Input Pin Setup -> VVT

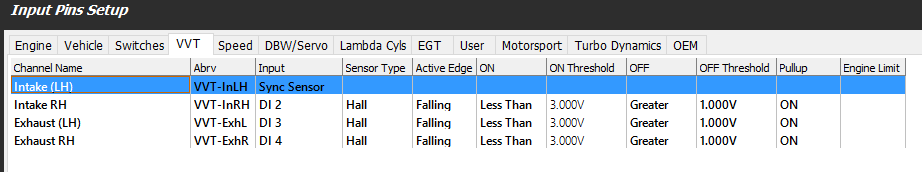

Example Config (quad cam VVT control):

Image Image

Configure sensor inputs as required.  Magnetic, Hall, DI threshold table, etc.

*** Since one Cam position sensor is being used for sync, select which camshaft should reference the Sync Sensor for position – IE Intake (LH). ***
