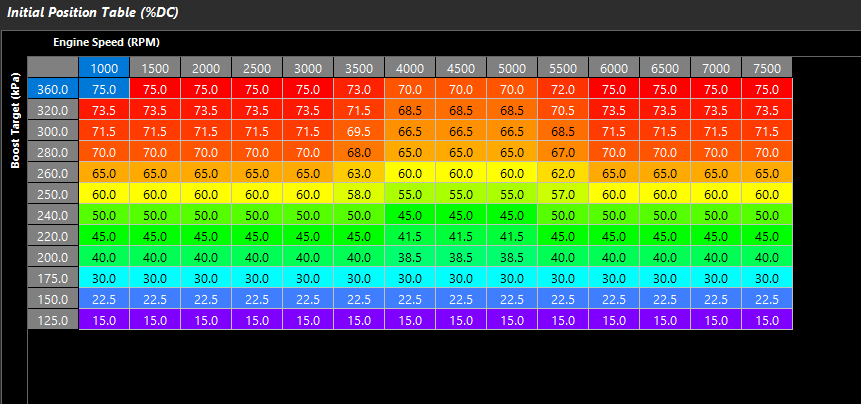

Initial Position Table

Initial Position Table

Used by the ECU as the main feed forward value to determine the output duty cycle.

This table is used in Open Loop Mode

Image Image

Initial position is the feed forward for Boost Valve Position %, and the closed loop PID if CL is active.

**Note

Boost Valve Deadtime is pre-calculated and added to Initial Position.

**Note – Push/Pull Solenoid Control

Will require no/very little initial position
