Intake Cam Angle Target Tables

Intake Cam Angle Target Tables

Image Image

Image Image

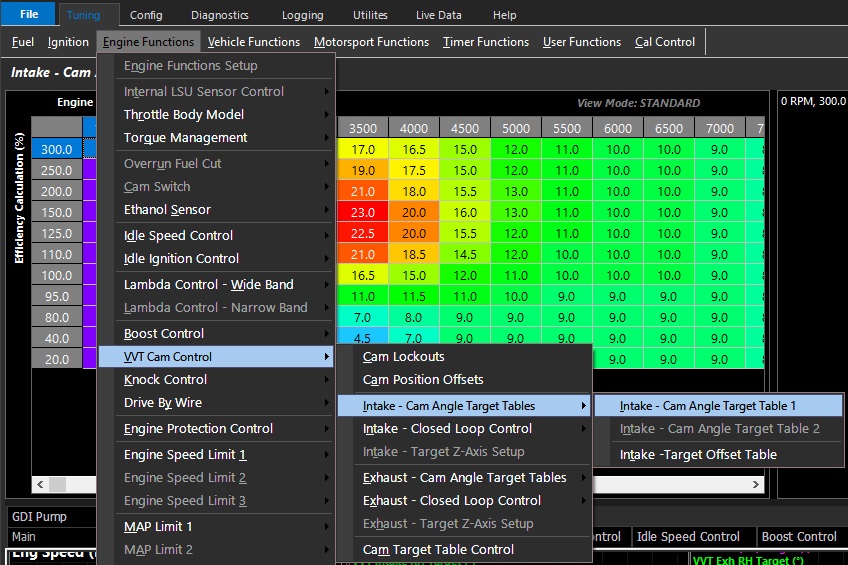

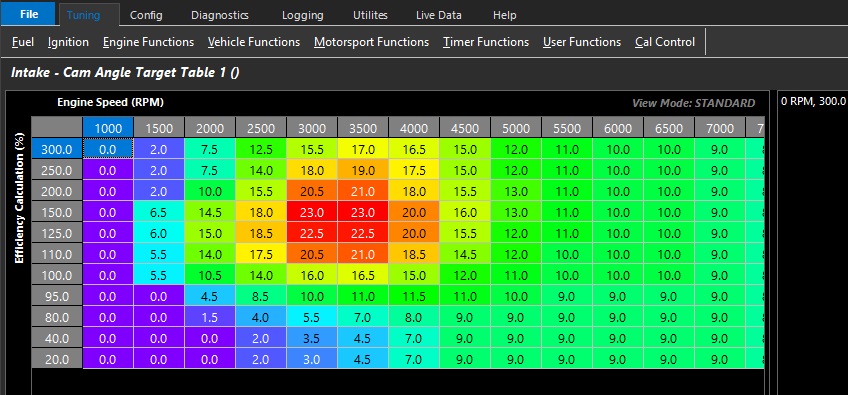

This is the Intake camshaft position command tables where the required camshaft position in degrees is set

Table units start from 0.

Positive numbers represent targeting advanced position of the camshaft.

    Intake target map = +25 degrees = 25 degrees of intake cam advance

**Typically numbers close to 0 represent the least amount of overlap which helps with idling.

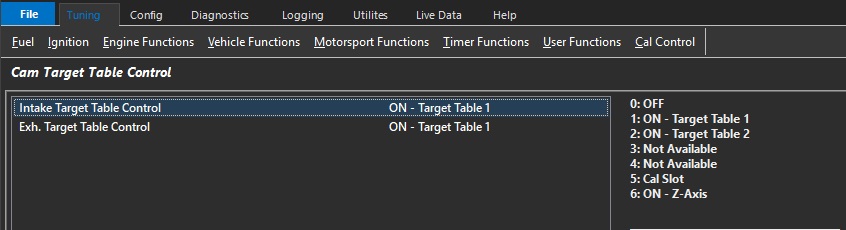

Intake Cam Angle Target Table 2 can be accessed/activated via Cam Target Table Control

There are a variety of methods of integration available.

Image Image

***WARNING***

Incorrect setting of the Intake Cam Angle Target Table can result in engine damage.

In modified engines, the piston to valve clearance of the engine should be measured.

The maximum safe advance angle should be known prior to setting VVT travel range.

If the valve clearance is compromised within the available travel range a mechaincal limit should be employed to prevent contact.

DO NOT rely on closed loop Cam Control to prevent piston to valve contact when there is a mechanical ability to cause contact.

**BMW Motorsport VANOS should not be targeted to the fully retarded or advanced position at any point.

This is because the system is designed to hydraulically lock the position once at the target (no solenoid regulation).

If for whatever reason the offset position is not exact (some variance with temp, engine speed, etc), the system could potentially over-regulate the solenoids.

Targeting a few degrees before each end stop is typical and mimics the OE function.
