Gear Detection Setup

Gear Detection Setup

Gear Position Enable

Enables the Gear Detection

0 = OFF

1 = ON

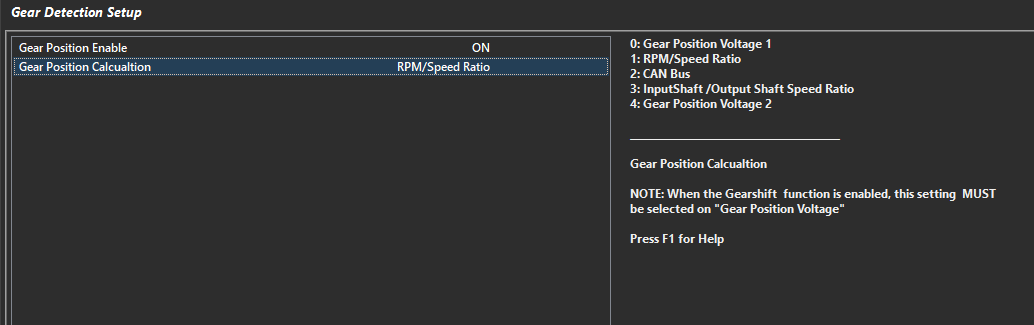

Gear Position Calculation

Choose the method of Gear Position Calculation

Image Image

Various modes are available.

0 = Gear Position Voltage 1     - Input must be assigned and calibrated

1 = RPM/Speed Ratio        - Gear is derived by RPM/speed channel defined (Under Gear Position RPM/Speed Setup)

2 = CAN Bus            - Gear is received over CAN bus

3 = Inputshaft/Outputshaft Ratio    - Gear is derived by calculating ratio of inputshaft/outputshaft speed

4= Gear Position Voltage 2    - Input must be assigned and calibrated
