Gear Position (RPM/Speed) Setup

Gear Position (RPM/Speed) Table

Image Image

Define the multiplier here to get speed for the ratio calculation to work.  IE -

100kph *34 in 5th gear = 3400rpm.

** NOTE:  Speed channel must be configured and scaled

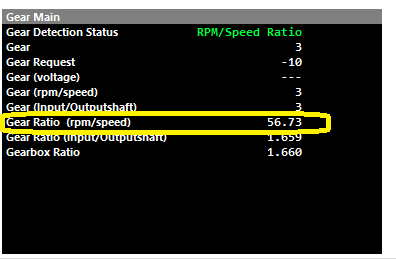

RPM/Speed ratio is also actively calculated in Runtimes ->

Image Image

3rd gear engaged shown
