Pre-defined Rx Set 1

Pre-defined Rx Set 1

Image Image

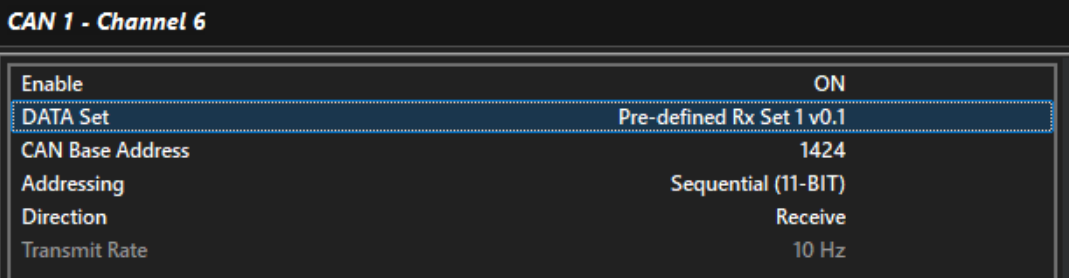

This data set allows a huge range of parameters to be read from the CAN bus and used by the ECU.

The DBC file is available at downloads.emtronaustralia.com.au

The data is received sequentially from ID 1424 to 1433.

Message 5 (ID 1428) includes the Emtron CAN Torque Limit Rx frame. It is received as part of this data set with the lowest priority.

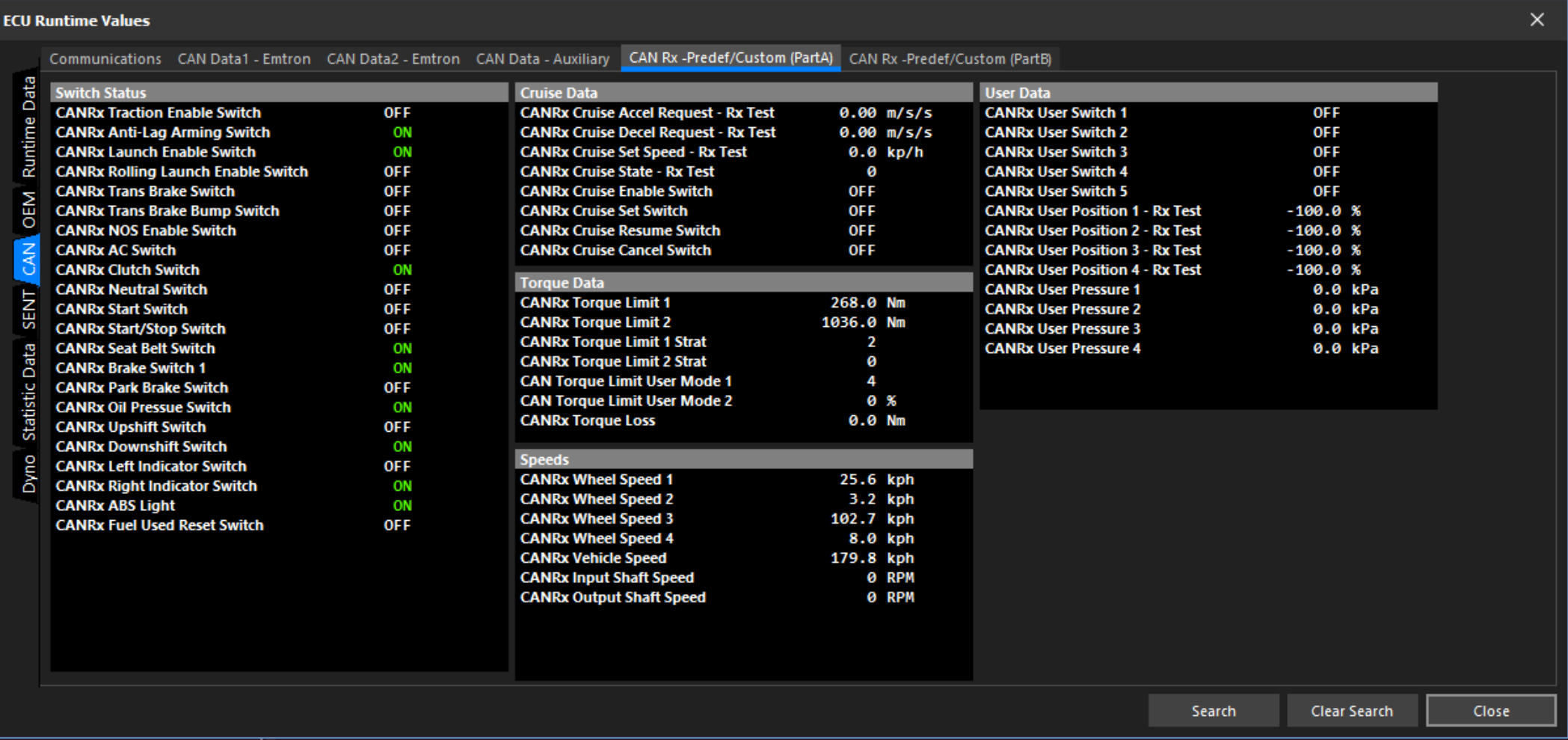

Raw data received is displayed in the F3 window on the CAN Tab.

Image Image

To use the data you must set the relevant input channel’s source to “CAN Predef Rx 1/Custom Rx1”.

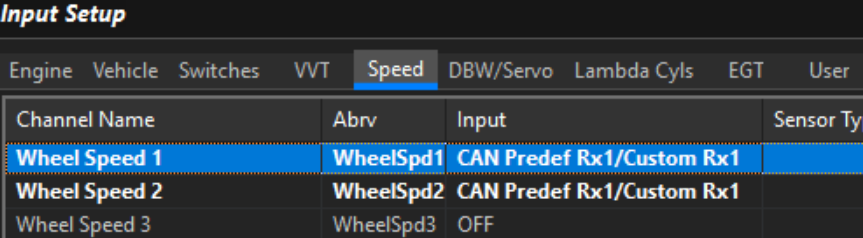

Example: Wheel Speed Channels:

Image Image

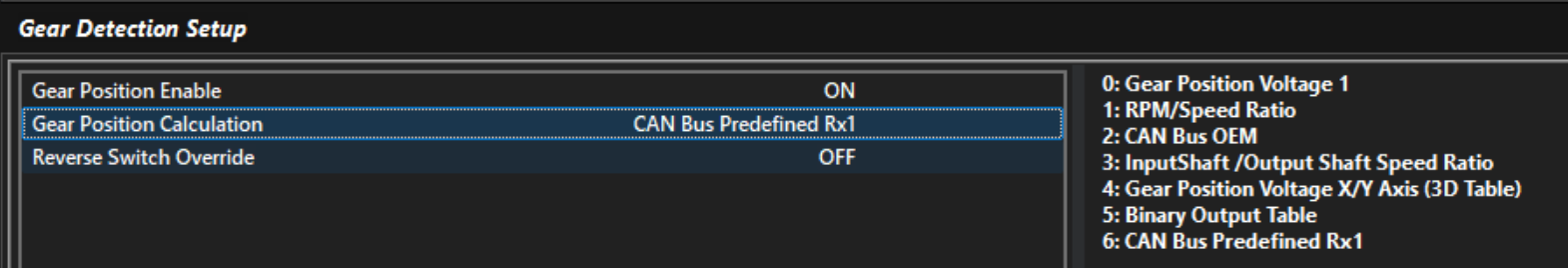

Example: Gear Detection:

Image Image
