Knock Lockouts

Knock Lockouts

Image Image

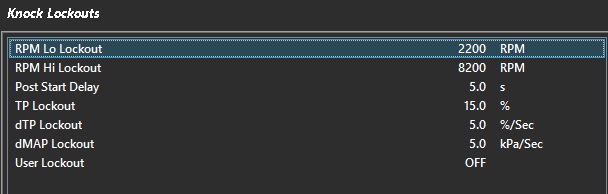

  • RPM Lo Lockout        -    Knock Control will be OFF below this RPM
  • RPM Hi Lockout        -    Knock Control will be OFF above this RPM
  • Post Start Delay         -    Delay in which Closed Loop Knock detection is active
  • TP Lockout            -    Minimum Throttle Position before Knock detection is active
  • dTP Lockout            -    Maximum Throttle Rate of Change in which Knock detection can become active
  • dMAP Lockout            -    Maximum Manifold Pressure Rate of Change in which Knock detection can become active
  • User Lockout            -    Allows user to create custom lockout channel
