TPS Closed Calibrate

TPS Closed Calibrate

This function is used to calibrate the closed position of the Throttle Position Sensor (TPS) for cable throttle systems.

For DBW systems, the DBW servo position (main & sub) are calibrated in the DBW Setup

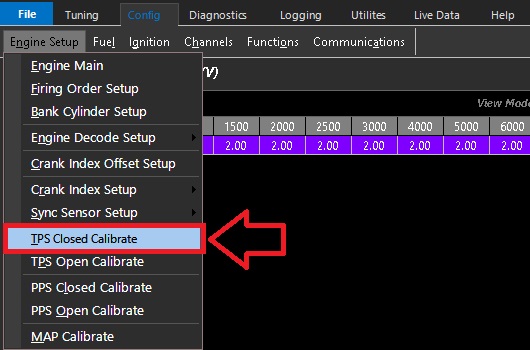

To utilise, Left mouse button click on tab (see above example)

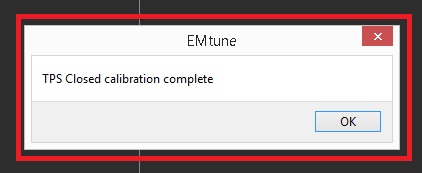

When completed, an acknowledgment tab will appear
