Injection Timing Secondary

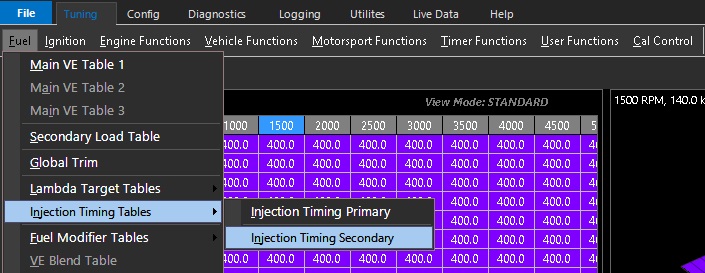

Injection Timing Secondary

Injector timing units are values in degrees.

Units are described as an “Advance Table”, so values are BTDC.

IE - 400 degrees = 400 degrees before TDC Cylinder 1 compression, or also 40 degrees before TDC between exhaust and intake stroke (overlap) - Valves Closed

360 degrees = TDC between exhaust and intake stroke (overlap period)

300 degrees = 60 degrees after intake valve has opened

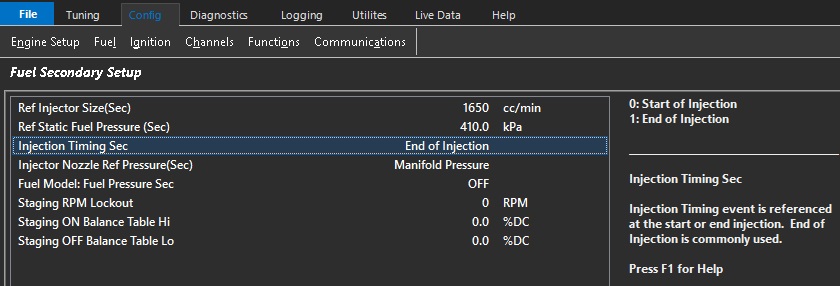

SOI/EOI (Determines start of injection or end of injection) function is controlled under : Injection Timing Sec

Config -> Fuel -> Fuel Secondary Setup -> Injection Timing Sec

Allows the Timing of the Secondary Injectors to operate independently of the Primary Injectors.  The Sec Injectors can be advanced up during the initial transition into staged mode to help improve the overall smoothness during this event,

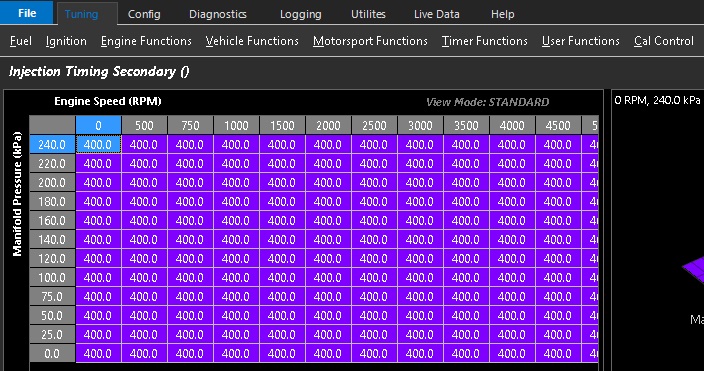

Table Size: 22 columns x 12 rows

Resolution: 0.1 Deg

Range: 0.0 - 720.0 Degs

This table 3D table is user definable across any available runtime

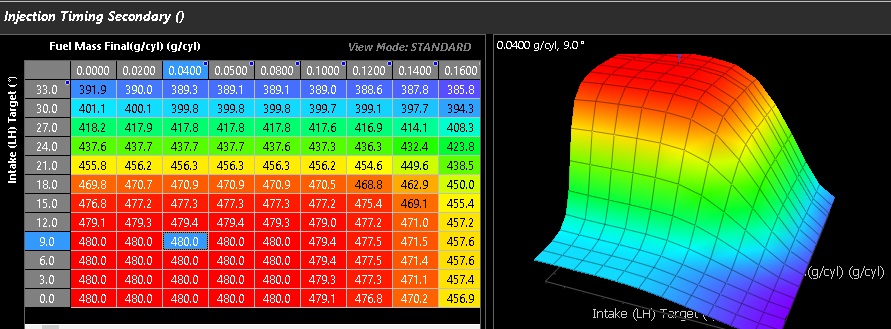

Above example is spanned across intake camshaft target angle & fuel mass final (g/cyl)
