Stoich Ratio Setup

Stoich Ratio Setup

Image Image

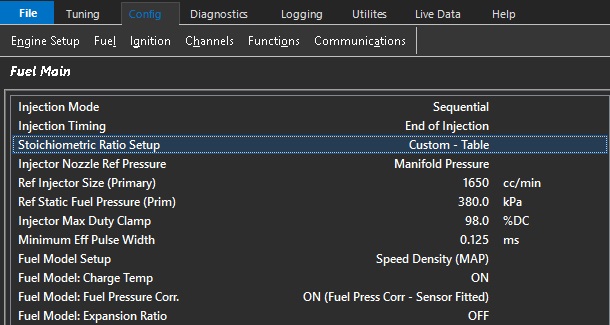

Used as part of the Fuel Model in conjunction with the Lambda Target to determine the required Fuel Mass.

Units: AFR

0: Default: 14.70 AFR

1: Custom - Table

2: Gasoline

3: E85 Alcohol

4: E100 Alcohol

5: Methanol

6: Propane

7: Diesel

A custom table allow the user to adjust the Stoich in real-time as the Fuel-type changes. An Ethanol example is shown below.

Image Image
