Engine Decoding Mode
Engine Decoding Mode

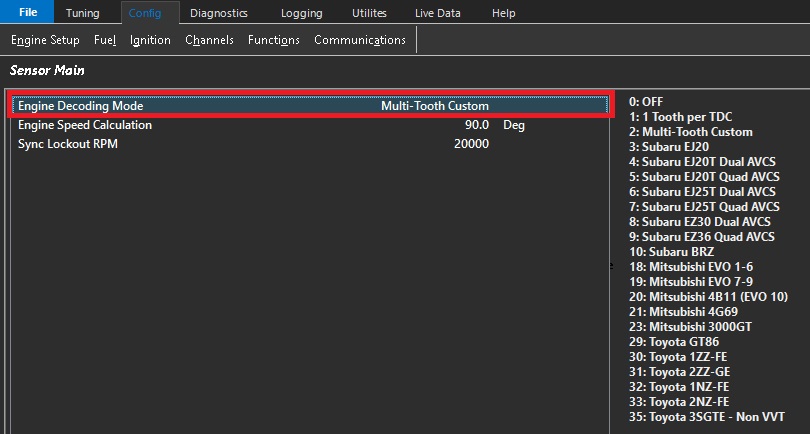

Engine decoding Mode configures the engine trigger type read by the ECU.
When selecting modes 3+ the ECU will initialize
both the Crank Index and Sync Sensor channels to
the correct settings. This includes:
· Sensor Type
· Sensor Edge
· Sensor Pull-up
· Arming Threshold Tables (TBC)
** This is considered Pre-Defined Decoding. All settings for Tooth Count, Index Tooth, Crank Index Offset, are all dictated by the ECU firmware and cannot be customized.
** If you have a custom setup that is using a type of one of these triggers that has been customized, please contact Emtron support directly for assistance.
After this is completed the ECU will be automatically
restarted. If required the user can then adjust these
settings.
CAUTION: Any setting change in the Crank Index or
Sync Sensor menu that differ from the default values
may cause permanent engine damage.
There are many trigger methods which can be decoded. The following trigger methods are compatible. This list will be constantly updated.
0 OFF
1 1 Tooth per TDC
2 Multi-Tooth Custom
3 Subaru EJ20
4 Subaru EJ20T Dual AVCS
5 Subaru EJ20T Quad AVCS
6 Subaru EJ25T Dual AVCS
7 Subaru EJ25T Quad AVCS
8 Subaru EZ30 Dual AVCS
9 Subaru EZ36 Quad AVCS
10 Subaru BRZ
18 Mitsubishi EVO 1-6
19 Mitsubishi EVO 7-9
20 Mitsubishi 4B11 (EVO 10)
21 Mitsubishi 4G69
22 Mitsubishi EVO 7-9 (12 Teeth Crk)
23 Mitsubishi 3000GT
28 Toyota GT86 2017+
29 Toyota GT86
30 Toyota 1ZZ-FE
31 Toyota 2ZZ-GE
32 Toyota 1NZ-FE
33 Toyota 2NZ-FE
35 Toyota 3SGTE - Non VVT
36 Toyota 3SGTE - VVT
38 Toyota 1JZ-GTE
39 Toyota 2JZ-GTE - VVT
40 Toyota 2JZ-GTE - Non VVT
41 Toyota 1UZFE (Non VVT - Use LH CAM)
42 Toyota 1UZFE VVT
43 Toyota 2UZFE
44 Toyota 3UZFE
45 Toyota 1URFE
46 Toyota 3URFE
47 Toyota 2URFSE/2URGSE
48 Toyota 1GR-FE
49 Toyota 2GR-FE
50 Toyota 3GR-FE
51 Toyota 2ZR-FE
52 Toyota 1FZ-FE
58 Honda VFR800S
59 Honda F20C
60 Honda B16
61 Honda B18
62 Honda K20
63 Honda K24
64 Honda L15B
65 Honda F22C Crk / F20C Sync
66 Honda J30 - J32
74 Nissan TB48
75 Nissan 360 Slot
76 Nissan VQ30
77 Nissan VQ35/VQ35HR VVT
78 Nissan VR38 VVT
79 Nissan VK45 VVT
80 Nissan VQ40
81 Nissan VK56 VVT
86 Chrysler Jeep 3.6L
87 Chrysler Jeep 4.0L Powertech I6
88 Chrysler Jeep 4.7L
90 GM LS1
91 GM LS2
92 GM LS3
93 GM LS6
94 GM LS7
95 GM x7 (6+1)
96 GM Ecotec LE9/LE5
97 GM LT4
105 Holden Alloytec (Mag Crank)
106 Holden Alloytec (Hall Crank)
108 Holden Astra (60-2)
109 Holden Astra (24 Teeth)
118 Ford BA XR6T
119 Ford BF XR6T
120 Ford FG XR6T
122 Ford Duratec 2.3L
123 Ford Coyote 5.0L
124 Ford Cosworth 2.0L
129 BWM S50 “Euro” Dual Vanos (Mag)
130 BMW N52/N54/N55 (Dual Vanos)
131 BWM S50 Dual Vanos (Mag)
132 BWM M50 Single Vanos (Mag)
133 BMW M52/S52 Single Vanos (Hall)
134 BWM M52TU/M54 Dual Vanos (Hall)
135 BWM S54 (+360) Dual Vanos (Mag)
136 BWM S54 Dual Vanos (Mag)
137 BMW S55 (Dual Vanos)
138 BWM S62
139 BWM S65
140 BWM S85
145 Mercedes AMG M156
146 Mercedes M120
150 Porsche 996
151 Porsche 997
155 Renault Clio 3
156 Renault F4A
160 Dodge Viper 8.0L Gen1
161 Dodge Viper 8.0L Gen2
162 Dodge Viper 8.3L Gen3
165 Dodge Hemi 6.1L
166 Dodge SRT4
167 Dodge Hemi 6.4L
170 Suzuki Hayabusa
171 Suzuki M13A
174 Suzuki M16A
175 Yamaha Jetski FZR
176 Yamaha YXZ1000
180 Mazda 13B
181 Mazda 2.0L (LF-VDS/LF-VE)
182 Maxda Mx5 (I Gen)
183 Maxda Mx5 (II Gen)
185 Jaguar 4.0L AJ27 -AJ28
190 Kawasaki Ultra 310 Jetski
191 Rotax ACE
194 Mercury Racing 850
195 Changan CX20
196 Changan 4D20T
200 Lamborghini Gallardo
