SL Series Wiring Harness Specification

1.0 Introduction

This document contains the specification for the Emtron SL Series wiring harness.

  • Loom Length = 2.5 meters
  • Wire Type = AVSS

NoteNOTE Any unused pins MUST have blanking bungs fitted to the connector to keep the plug rated at its IP standard.

2.0 Connector A

PropertyValue
NameSuperseal
ManufacturerTE
Description34 Way / Key 2
Part Number4-1437290-1

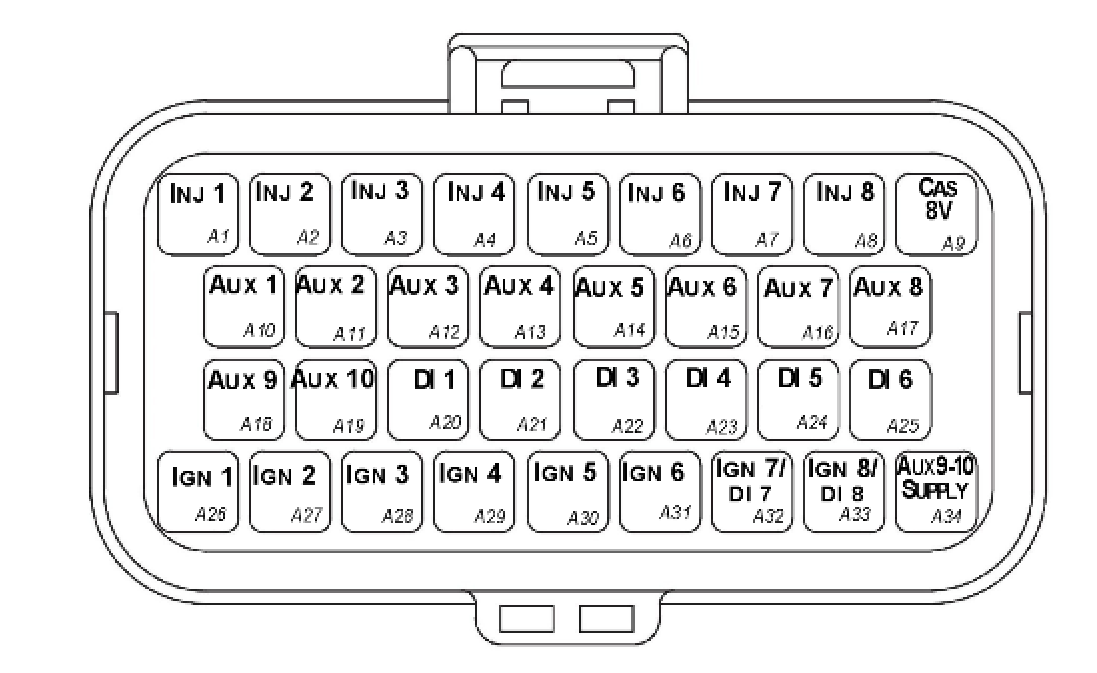

Connector A — TE Superseal 34 Way / Key 2.

Connector A — TE Superseal 34 Way / Key 2.

2.1 Connector A Wire Colours

Pin NamePinDescriptionColourWire Size (sq mm)
INJ 1A1Injector Channel 1Blue0.50
INJ 2A2Injector Channel 2Blue0.50
INJ 3A3Injector Channel 3Blue0.50
INJ 4A4Injector Channel 4Blue0.50
INJ 5A5Injector Channel 5Blue0.50
INJ 6A6Injector Channel 6Blue0.50
INJ 7A7Injector Channel 7Blue0.50
INJ 8A8Injector Channel 8Blue0.50
CAS 8VA98V Cas SupplyWhite/Orange0.50
AUX 1A10Auxiliary Channel 1Grey0.50
AUX 2A11Auxiliary Channel 2Grey0.50
AUX 3A12Auxiliary Channel 3Grey0.50
AUX 4A13Auxiliary Channel 4Grey0.50
AUX 5A14Auxiliary Channel 5Grey0.50
AUX 6A15Auxiliary Channel 6Grey0.50
AUX 7A16Auxiliary Channel 7Grey0.50
AUX 8A17Auxiliary Channel 8Grey0.50
AUX 9A18Auxiliary Channel 9Grey0.50
AUX 10A19Auxiliary Channel 10Grey0.50
DI 1A20Digital Input CH 1White0.50
DI 2A21Digital Input CH 2White0.50
DI 3A22Digital Input CH 3White0.50
DI 4A23Digital Input CH 4White0.50
DI 5A24Digital Input CH 5White0.50
DI 6A25Digital Input CH 6White0.50
IGN 1A26Ignition Channel 1Yellow0.50
IGN 2A27Ignition Channel 2Yellow0.50
IGN 3A28Ignition Channel 3Yellow0.50
IGN 4A29Ignition Channel 4Yellow0.50
IGN 5A30Ignition Channel 5Yellow0.50
IGN 6A31Ignition Channel 6Yellow0.50
IGN 7 / DI 7A32Ignition Channel 7Yellow0.50
IGN 8 / DI 8A33Ignition Channel 8Yellow0.50
AUX 9-10 SUPPLYA34Power supply for Aux 9-10 high sideRed0.85

3.0 Connector B

PropertyValue
NameSuperseal
ManufacturerTE
Description34 Way / Key 1
Part Number4-1437290-0

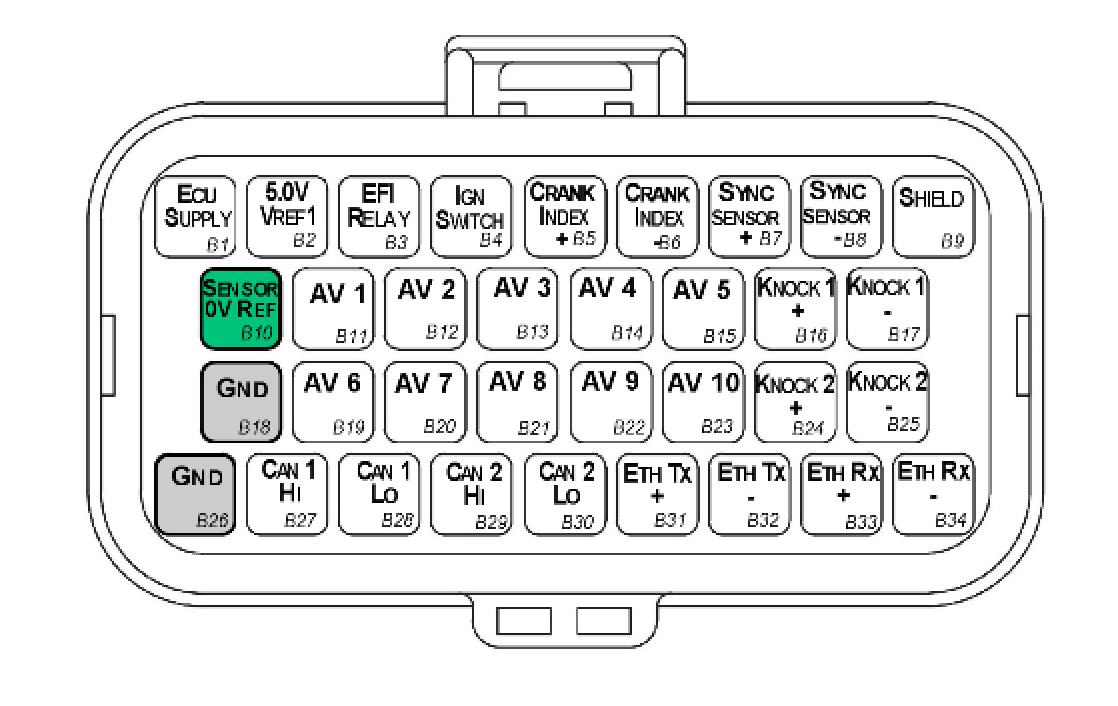

Connector B — TE Superseal 34 Way / Key 1.

Connector B — TE Superseal 34 Way / Key 1.

3.1 Connector B Wire Colours

Pin NamePinDescriptionColourWire Size (sq mm)
ECU SUPPLYB1ECU SupplyRed0.85
5V SUPPLYB2Main 5V engine sensor supply (Branched)Orange0.50
EFI RELAYB3Main Relay ControlPink/Black0.50
IGN SWITCHB4Ignition SwitchRed0.50
CRANK INDEX +B5Crank Index position sensor Positive2 core Shielded Cable (shared with B6)—
CRANK INDEX -B6Crank Index position sensor Negative2 core Shielded Cable (shared with B5)—
SYNC SENSOR +B7Sync Sensor Positive2 core Shielded Cable (shared with B8)—
SYNC SENSOR -B8Sync Sensor Negative2 core Shielded Cable (shared with B7)—
ShieldB9Knock/Trigger Shield (White 70mm)White0.50
Sensor GndB10Sensor Ground (Branched Cable)Black0.50
AV 1B11Analog Voltage CH 1White0.50
AV 2B12Analog Voltage CH 2White0.50
AV 3B13Analog Voltage CH 3White0.50
AV 4B14Analog Voltage CH 4White0.50
AV 5B15Analog Voltage CH 5White0.50
KNK 1 +B16Knock Sensor 1 +2 core Shielded Cable (shared with B17)—
KNK 1 -B17Knock Sensor 1 -2 core Shielded Cable (shared with B16)—
GNDB18Power GroundBlack0.85
AV 6B19Analog Voltage CH 6White0.50
AV 7B20Analog Voltage CH 7White0.50
AV 8B21Analog Voltage CH 8White0.50
AV 9B22Analog Voltage CH 9White0.50
AV 10B23Analog Voltage CH 10White0.50
KNK 2 +B24Knock Sensor 2 +2 core Shielded Cable (shared with B25)—
KNK 2 -B25Knock Sensor 2 -2 core Shielded Cable (shared with B24)—
GNDB26Power GroundBlack0.85
CAN 1 HIB27Main Engine CANWhite0.50
CAN 1 LOB28Main Engine CANGreen0.50
CAN 2 HIB29Auxiliary CANWhite
CAN 2 LOB30Auxiliary CANGreen
Ethernet TX+B31Twisted Pair CAT 5E
Ethernet TX-B32Twisted Pair CAT 5E
Ethernet RX+B33Twisted Pair CAT 5E
Ethernet RX-B34Twisted Pair CAT 5E

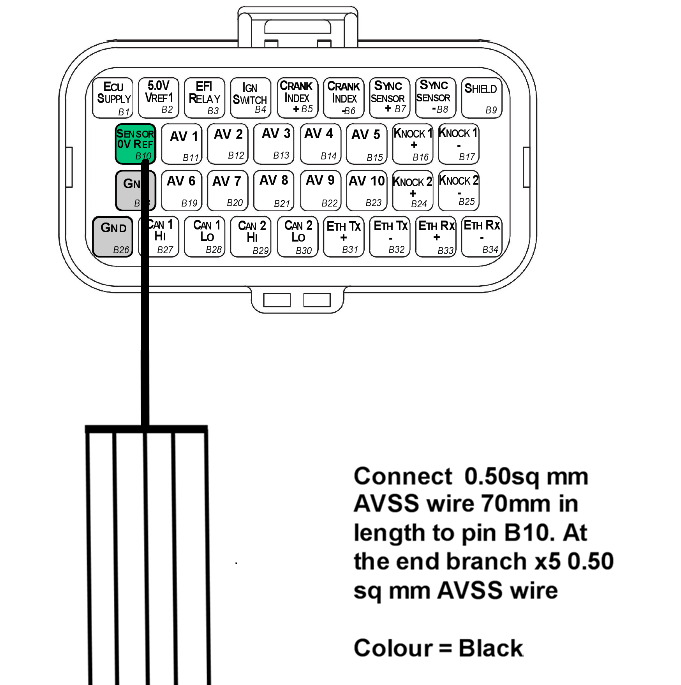

3.2 Pin B10 Sensor Ground Branched Connections

Pin B10 (Sensor Ground) is a branched connection feeding the analog sensor 0V references.

Pin B10 (Sensor Ground) is a branched connection feeding the analog sensor 0V references.

3.3 Pin B2 5V Supply Branched Connections

Pin B2 (5V Supply) is a branched connection feeding the engine sensor 5V supply.

3.4 Crank and Sync Shielded Cable Connections

  • Use x1 2-core shielded cable for Pins B5 and B6
  • Use x1 2-core shielded cable for Pins B7 and B8

NoteNOTE The individual core colours are not specified but there MUST be at least one different core colour between the Crank Index cable and Sync Sensor cable — i.e. the exact same cables cannot be used for both connections.

3.5 Knock Shielded Cable Connections

  • Use x1 2-core shielded cable for Pins B16 and B17
  • Use x1 2-core shielded cable for Pins B24 and B25

NoteNOTE The individual core colours are not specified but there MUST be at least one different core colour between the KNK 1 cable and KNK 2 cable — i.e. the exact same cables cannot be used for both connections. Ideally these core colours should also be different to those used in section 3.4.

3.6 Ethernet Sub Harness - Pins B31-B34

See the document “Ethernet to Superseal Loom Specification V1.x”. This sub harness should be plugged into Connector B, Pins B31 → B34.

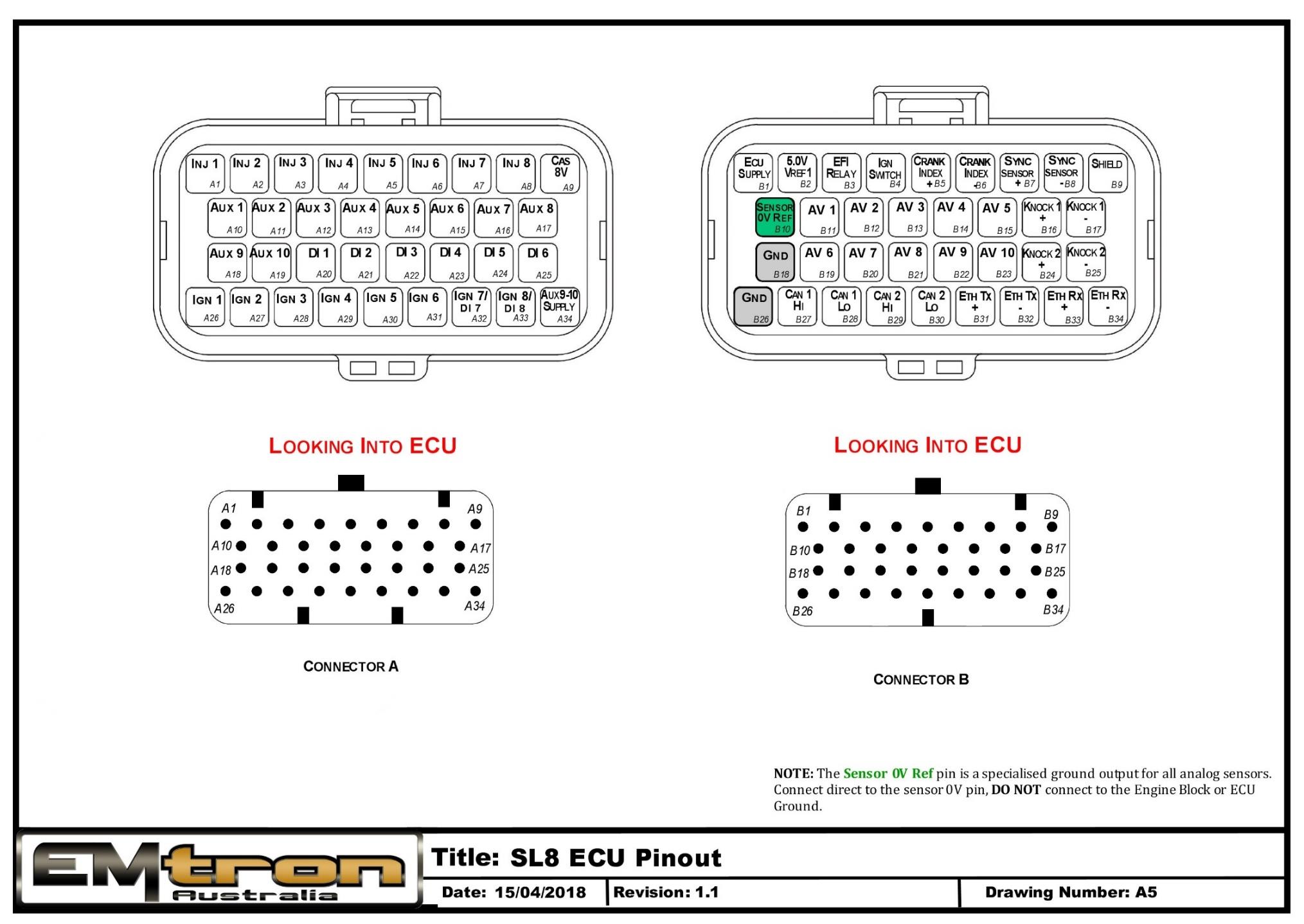

Appendix A – SL8 ECU Pinout Drawing

SL8 ECU pinout — Connector A and Connector B, looking into the ECU.

SL8 ECU pinout — Connector A and Connector B, looking into the ECU.

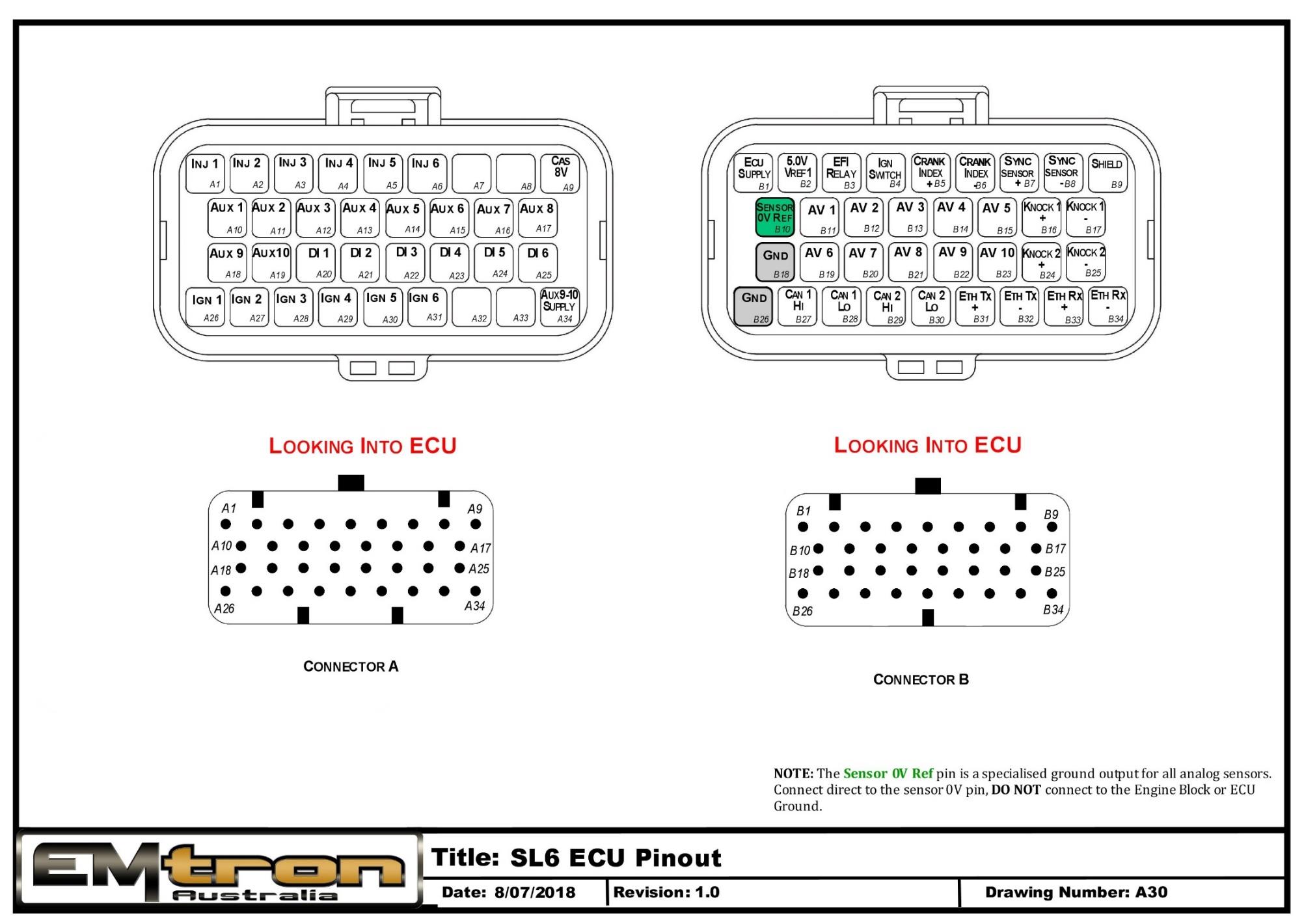

Appendix B – SL6 ECU Pinout Drawing

SL6 ECU pinout — Connector A and Connector B, looking into the ECU.

SL6 ECU pinout — Connector A and Connector B, looking into the ECU.

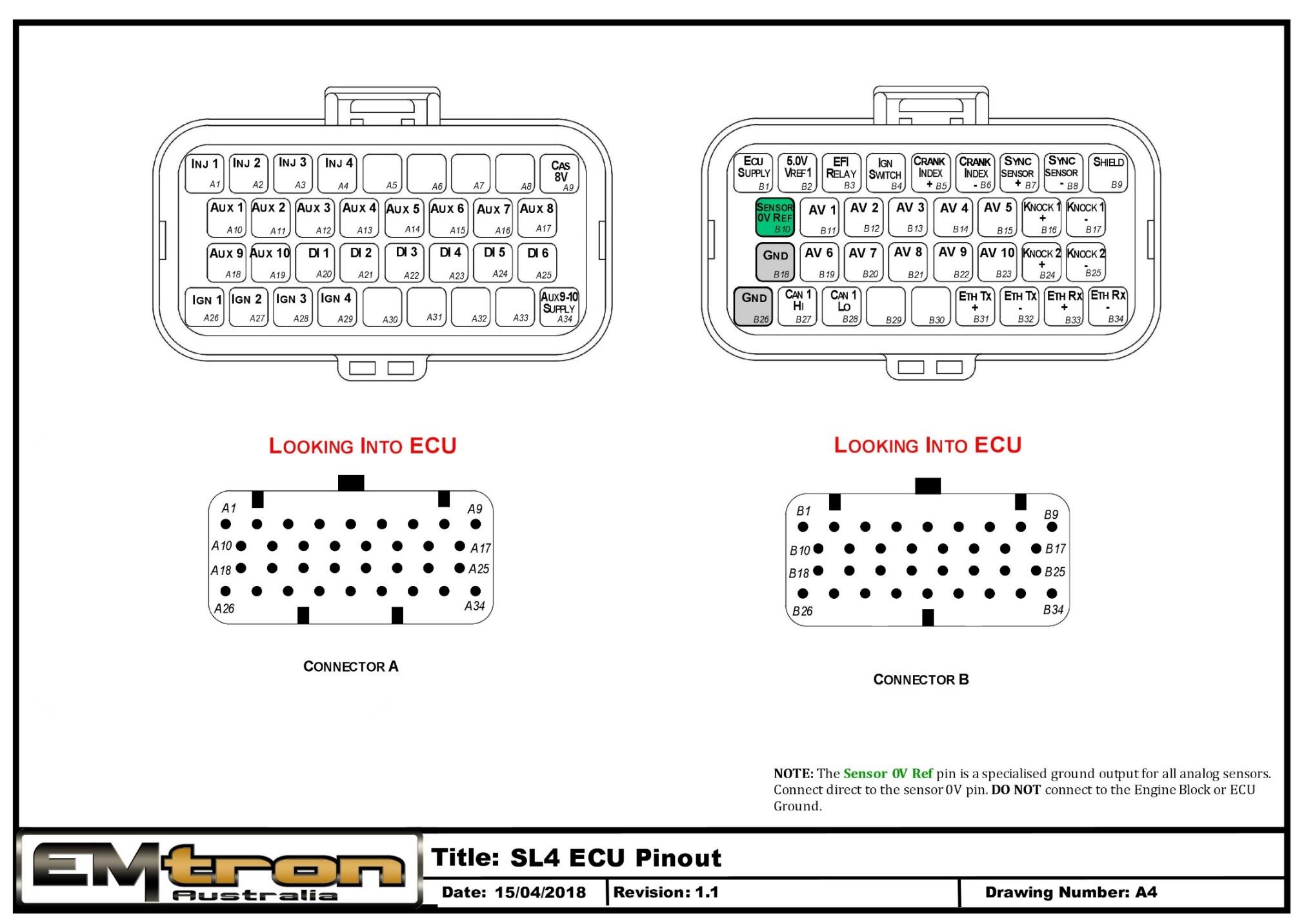

Appendix C – SL4 ECU Pinout Drawing

SL4 ECU pinout — Connector A and Connector B, looking into the ECU.

SL4 ECU pinout — Connector A and Connector B, looking into the ECU.

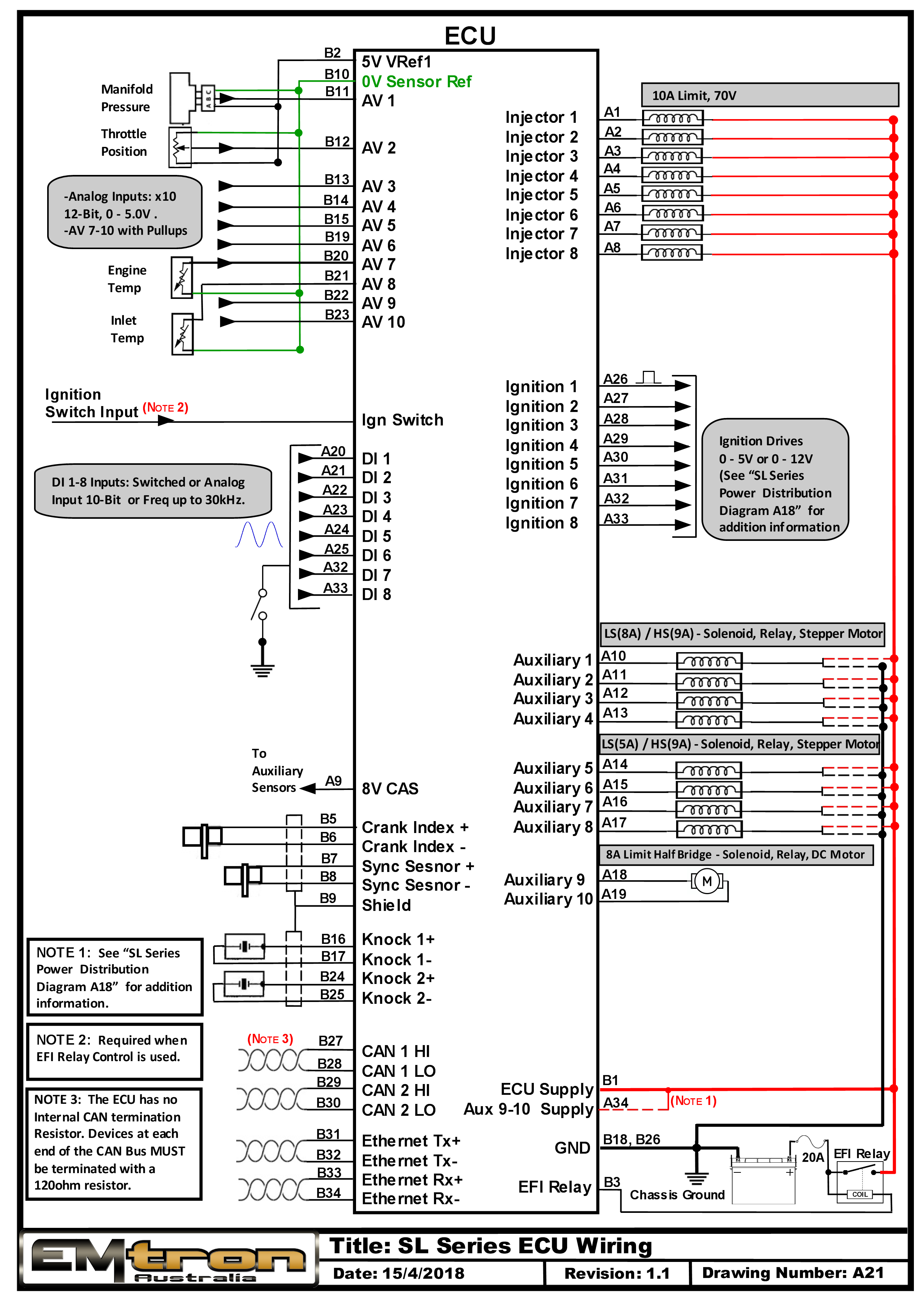

Appendix D – SL Series ECU Wiring

SL Series ECU wiring overview (drawing A21).

SL Series ECU wiring overview (drawing A21).

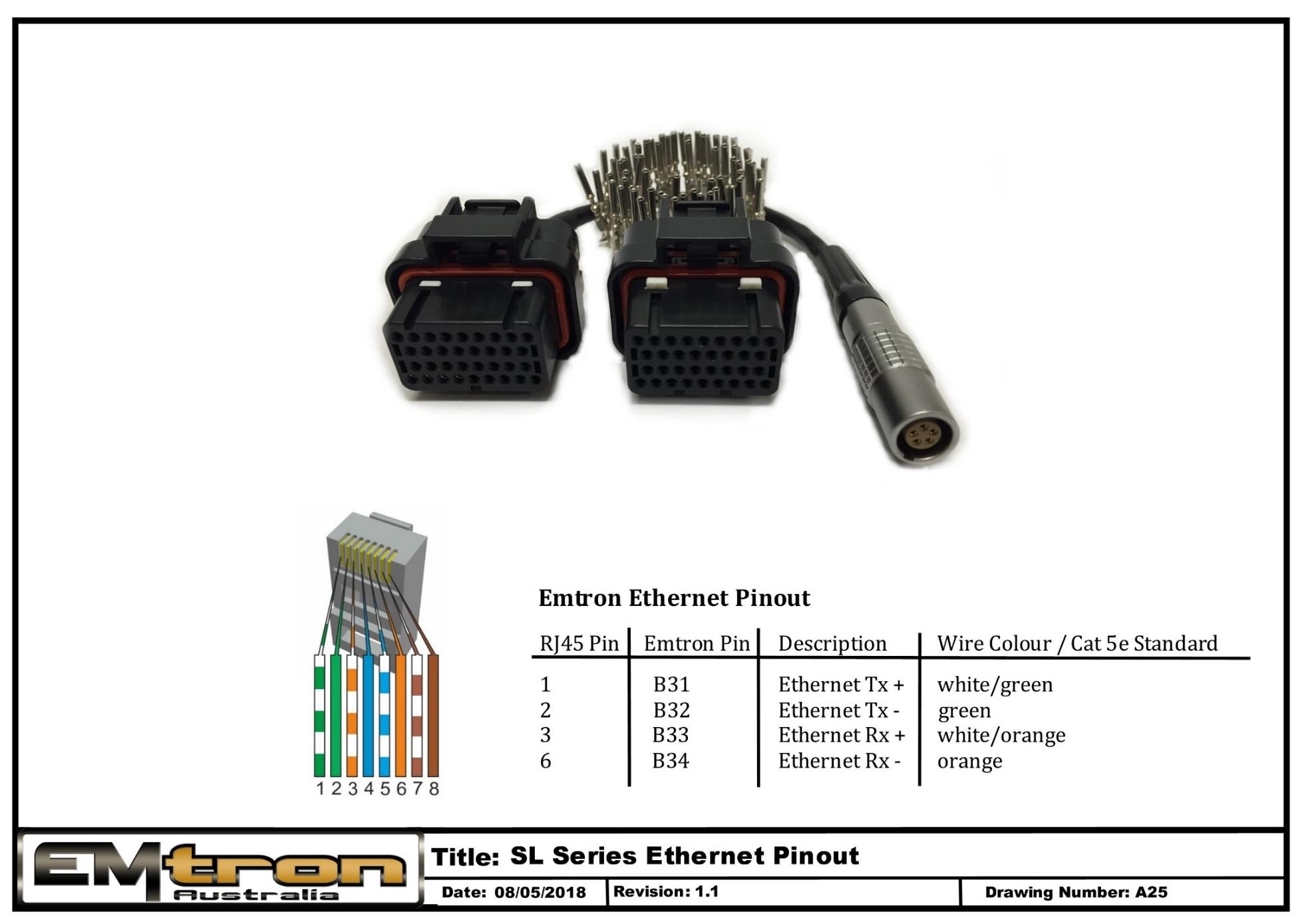

Appendix E – SL Series Ethernet Wiring

SL Series Ethernet wiring / tuning cable pinout (drawing A25).

SL Series Ethernet wiring / tuning cable pinout (drawing A25).
